IR2302 - HALF-BRIDGE DRIVER

International Rectifier

📥 Download Datasheet

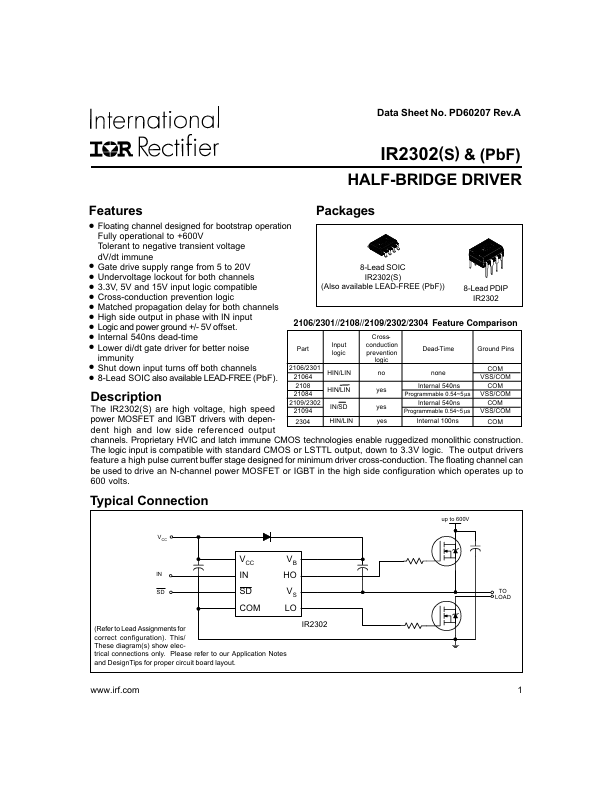

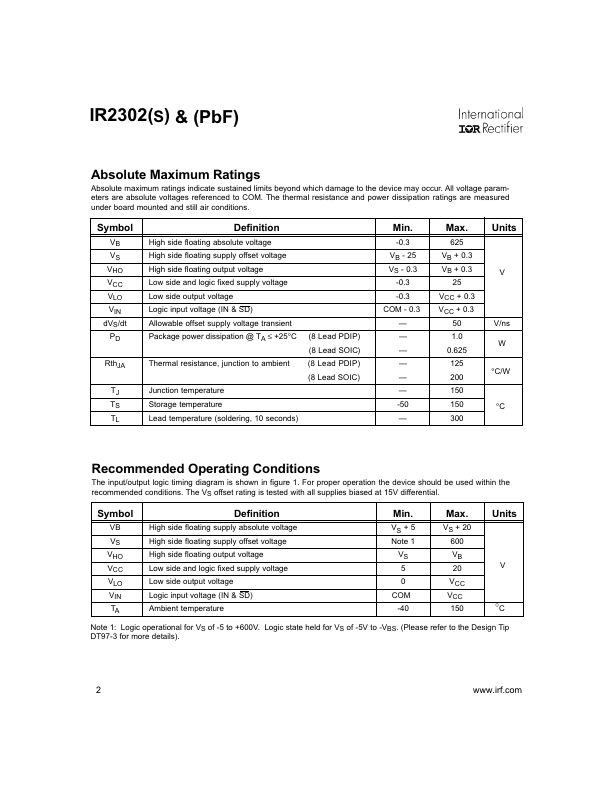

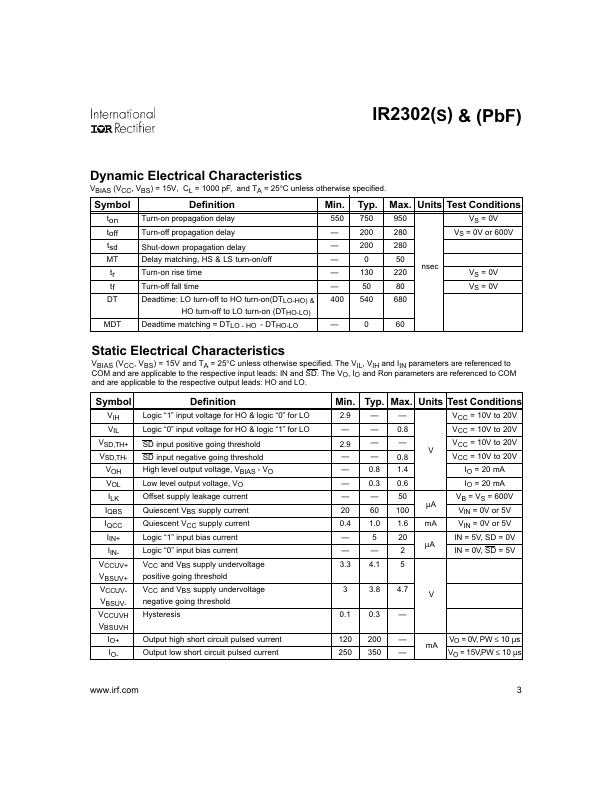

IR2302 Datasheet Preview — Preview of IR2302 PDF

Datasheet Details

Part number	IR2302
Manufacturer	International Rectifier
File Size	209.25 KB
Description	HALF-BRIDGE DRIVER
Datasheet	IR2302_InternationalRectifier.pdf

IR2302 Product details

Description

The IR2302(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output 8-Lead SOIC IR2302(S) (Also available LEAD-FREE (PbF)) 8-Lead PDIP IR2302 2106/2301//2108//2109/2302/2304 Feature Comparison Part Input logic 2106/2301 21064 2108 21084 2109/2302 21094 2304 HIN/LIN HIN/LIN IN/SD HIN/LIN Crossconduction prevention logic no yes yes yes Dead-Time none Internal 540ns Programmable 0.54~5 µs Internal 540ns Programmable 0.54~5 µs Internal

Features

Packages.
Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune.
Gate drive supply range from 5 to 20V.
Undervoltage lockout for both channels.
3.3V, 5V and 15V input logic compatible.
Cross-conduction prevention logic.
Matched propagation delay for both channels.
High side output in phase with IN input.
Logic and power ground +/- 5V offset.
