IR2110S - HIGH AND LOW SIDE DRIVER

Name: IR2110S
SKU: IR2110S-283194

International Rectifier

📥 Download Datasheet

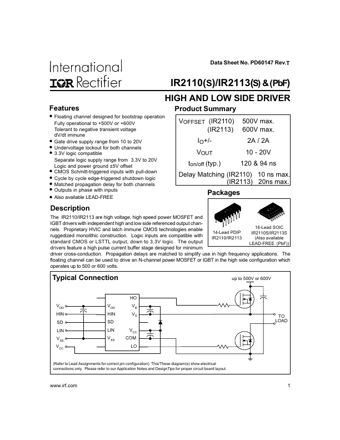

IR2110S Datasheet Preview — Preview of IR2110S PDF

Datasheet Details

Part number	IR2110S
Manufacturer	International Rectifier
File Size	221.86 KB
Description	HIGH AND LOW SIDE DRIVER
Datasheet	IR2110S_InternationalRectifier.pdf

IR2110S Product details

Description

The IR2110/IR2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output chan16-Lead SOIC nels.

Features

Floating channel designed for bootstrap operation.
Fully operational to +500V or +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout for both channels 3.3V logic compatible Separate logic supply range from 3.3V to 20V Logic and power ground ±5V offset CMOS Schmitt-triggered inputs with pull-down Cycle by cycle edge-triggered shutdown logic Mat.
