IR2110E6 - HIGH AND LOW SIDE DRIVER

Description

The IR2110E6 is a high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.

Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.

Logic inputs are compatible with standard CMOS or LSTTL outputs.

Features

  • n Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune n Gate drive supply range from 10 to 20V n Undervoltage lockout for both channels n Separate logic supply range from 5 to 20V Logic and power ground ±5V offset n CMOS Schmitt-triggered inputs with pull-down n Cycle by cycle edge-triggered shutdown logic n Matched propagation delay for both channels n Outputs in phase with inputs Product Summary.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IR2186 HIGH AND LOW SIDE DRIVER IRF
IR21864PBF HIGH AND LOW SIDE DRIVER IRF
IR21864SPBF HIGH AND LOW SIDE DRIVER IRF
IR2186S HIGH AND LOW SIDE DRIVER IRF
IR21BD Infrared Single Gas Sensor SGX

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IR2110E4 HIGH AND LOW SIDE DRIVER
IR2110 HIGH AND LOW SIDE DRIVER
IR2110C High and Low Side Driver
IR2110L4 HIGH AND LOW SIDE DRIVER
IR2110L6 HIGH AND LOW SIDE DRIVER

Full PDF Text Transcription

Click to expand full text

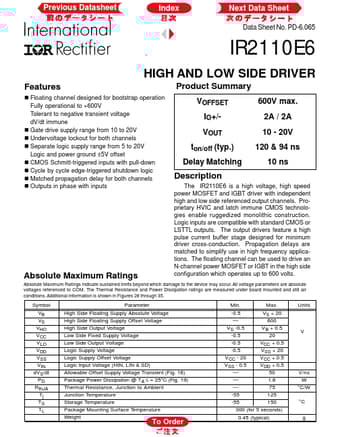

Previous Datasheet Index Next Data Sheet Data Sheet No. PD-6.065 IR2110E6 HIGH AND LOW SIDE DRIVER Features n Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune n Gate drive supply range from 10 to 20V n Undervoltage lockout for both channels n Separate logic supply range from 5 to 20V Logic and power ground ±5V offset n CMOS Schmitt-triggered inputs with pull-down n Cycle by cycle edge-triggered shutdown logic n Matched propagation delay for both channels n Outputs in phase with inputs Product Summary VOFFSET IO+/VOUT ton/off (typ.) Delay Matching 600V max.
