IR2011PBF - High and Low Side Driver

International Rectifier

📥 Download Datasheet

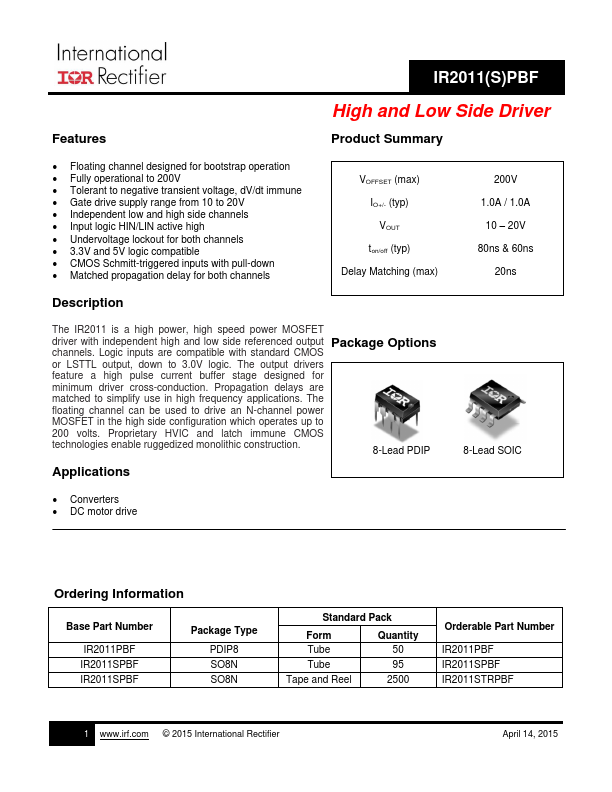

IR2011PBF Datasheet Preview — Preview of IR2011PBF PDF

Datasheet Details

Part number	IR2011PBF
Manufacturer	International Rectifier
File Size	1.21 MB
Description	High and Low Side Driver
Datasheet	IR2011PBF-InternationalRectifier.pdf

IR2011PBF Product details

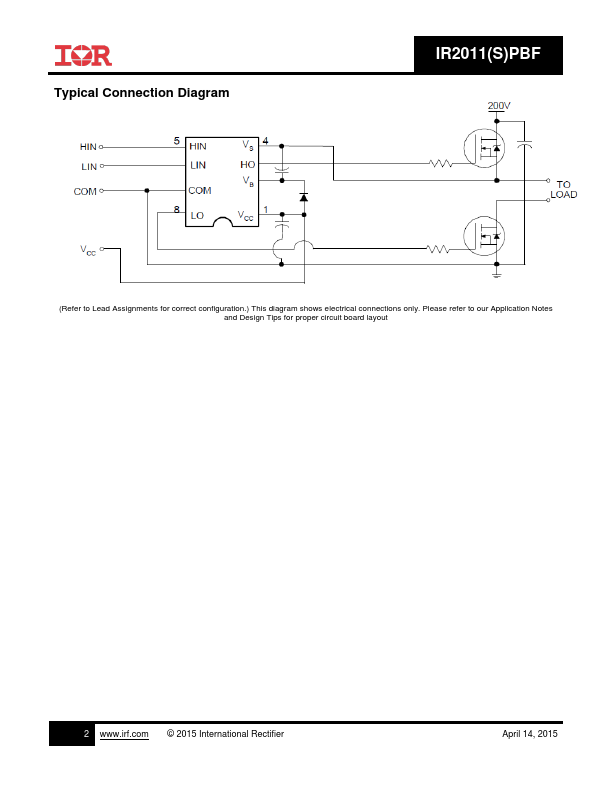

Description

The IR2011 is a high power, high speed power MOSFET driver with independent high and low side referenced output Package Options channels.Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.0V logic.The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.Propagation delays are matched to simplify use in high frequency applications.The floating channel can be used to drive an N-channel power MOSFET in the high sid

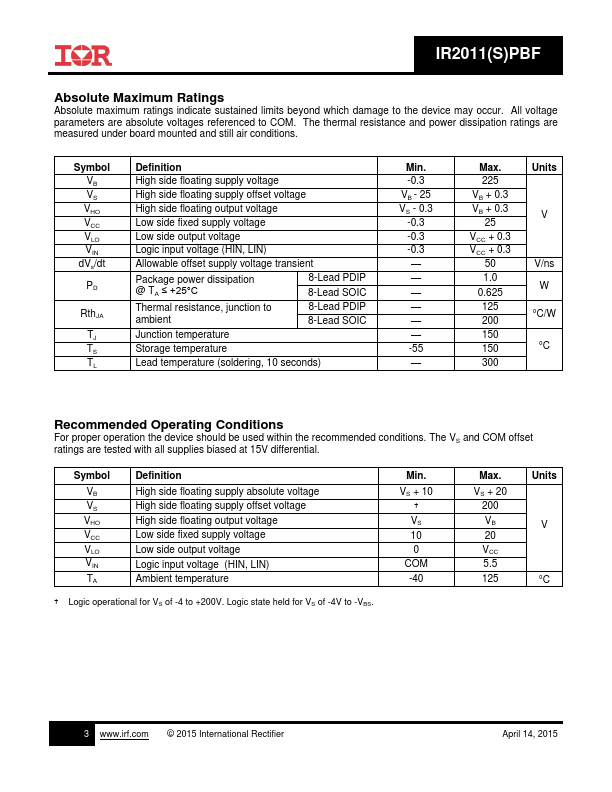

Features

Product Summary.
Floating channel designed for bootstrap operation.
Fully operational to 200V.
Tolerant to negative transient voltage, dV/dt immune.
Gate drive supply range from 10 to 20V.
Independent low and high side channels.
Input logic HIN/LIN active high.
Undervoltage lockout for both channels.
3.3V and 5V logic compatible.
CMOS Schmitt-triggered inputs with pull-down.
Matched propagation delay for both channels.
