IR2010 - High and Low Side Driver

International Rectifier

📥 Download Datasheet

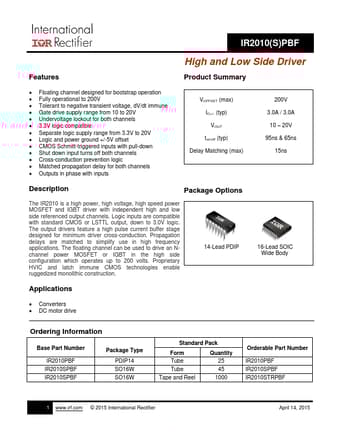

IR2010 Datasheet Preview — Preview of IR2010 PDF

Datasheet Details

Part number	IR2010
Manufacturer	International Rectifier
File Size	2.24 MB
Description	High and Low Side Driver
Datasheet	IR2010-InternationalRectifier.pdf

IR2010 Product details

Description

Package Options The IR2010 is a high power, high voltage, high speed power MOSFET and IGBT driver with independent high and low side referenced output channels.Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.0V logic.The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.Propagation delays are matched to simplify use in high frequency applications.The floating channel can be used to drive an Nchannel power MOSFET

Features

Product Summary.
Floating channel designed for bootstrap operation.
Fully operational to 200V.
Tolerant to negative transient voltage, dV/dt immune.
Gate drive supply range from 10 to 20V.
Undervoltage lockout for both channels.
3.3V logic compatible.
Separate logic supply range from 3.3V to 20V.
Logic and power ground +/-5V offset.
CMOS Schmitt-triggered inputs with pull-down.
Shut down input turns off both channels.
Cross-conduction prev.
