AUIRF3805L, AUIRF3805S - HEXFET Power MOSFET

International Rectifier

The AUIRF3805L by International Rectifier is a HEXFET Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

AUIRF3805L HEXFET Power MOSFET by International Rectifier - Datasheet Preview — Official preview page of the **AUIRF3805L** HEXFET Power MOSFET datasheet (International Rectifier).

Datasheet Details

Part number	AUIRF3805L, AUIRF3805S
Manufacturer	International Rectifier
File Size	416.33 KB
Description	HEXFET Power MOSFET
Datasheet	AUIRF3805S_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: AUIRF3805L, AUIRF3805S. Please refer to the document for exact specifications by model.

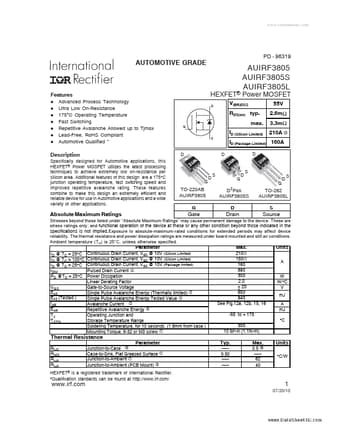

Additional preview pages of the AUIRF3805L datasheet.

AUIRF3805L Product details

Description

Specifically designed for Automotive applications, this HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area.

Features

l l l l l l l HEXFET® Power MOSFET D AUIRF3805 AUIRF3805S AUIRF3805L 55V 2.6mΩ 210A c 3.3mΩ max. Advanced Process Technology Ultra Low On-Resistance 175°C Operating Temperature Fast Switching Repetitive Avalanche Allowed up to Tjmax Lead-Free, RoHS Compliant Automotive Qualified.
V(BR)DSS RDS(on) typ. G S ID (Silicon Limited) ID (Package Limited) 160A D D.
