AHV2815S, AHV2805S - HYBRID-HIGH RELIABILITY DC-DC CONVERTER

International Rectifier

📥 Download Datasheet

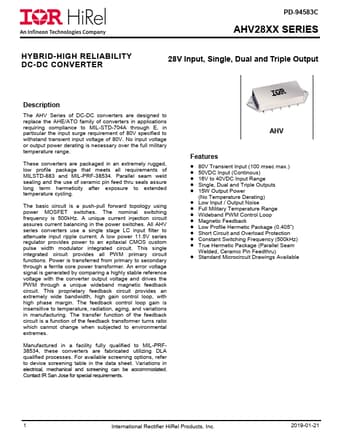

AHV2815S Datasheet Preview — This datasheet PDF includes multiple part numbers: AHV2815S, AHV2805S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AHV2815S, AHV2805S
Manufacturer	International Rectifier
File Size	759.67 KB
Description	HYBRID-HIGH RELIABILITY DC-DC CONVERTER
Datasheet	AHV2805S-InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: AHV2815S, AHV2805S. Please refer to the document for exact specifications by model.

AHV2815S Product details

Description

The AHV Series of DC-DC converters are designed to replace the AHE/ATO family of converters in applications requiring compliance to MIL-STD-704A through E, in particular the input surge requirement of 80V specified to withstand transient input voltage of 80V.

Features

80V Transient Input (100 msec max. ).
50VDC Input (Continous).
16V to 40VDC Input Range.
Single, Dual and Triple Outputs.
15W Output Power (No Temperature Derating).
Low Input / Output Noise.
Full Military Temperature Range.
Wideband PWM Control Loop.
Magnetic Feedback.
Low Profile Hermetic Package (0.405”).
Short Circuit and Overload Protection.
Constant Switching Frequency (500kHz).
True Hermetic Package (Parallel Seam Welded, Ce.
