AHV2805S - HYBRID-HIGH RELIABILITY DC-DC CONVERTER

International Rectifier

The AHV2805S by International Rectifier is a HYBRID-HIGH RELIABILITY DC-DC CONVERTER. Below is the official datasheet preview.

📥 Download Datasheet

AHV2805S HYBRID-HIGH RELIABILITY DC-DC CONVERTER by International Rectifier - Datasheet Preview — Official preview page of the **AHV2805S** HYBRID-HIGH RELIABILITY DC-DC CONVERTER datasheet (International Rectifier).

Datasheet Details

Part number	AHV2805S
Manufacturer	International Rectifier
File Size	759.67 KB
Description	HYBRID-HIGH RELIABILITY DC-DC CONVERTER
Datasheet	AHV2805S-InternationalRectifier.pdf

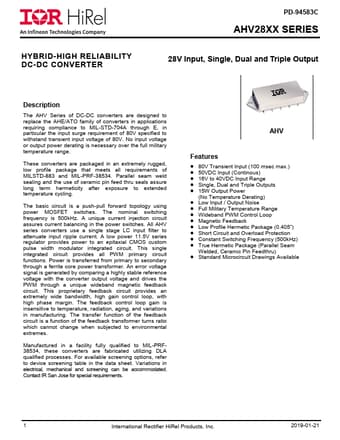

Additional preview pages of the AHV2805S datasheet.

AHV2805S Product details

Description

The AHV Series of DC-DC converters are designed to replace the AHE/ATO family of converters in applications requiring compliance to MIL-STD-704A through E, in particular the input surge requirement of 80V specified to withstand transient input voltage of 80V.

Features

80V Transient Input (100 msec max. ).
50VDC Input (Continous).
16V to 40VDC Input Range.
Single, Dual and Triple Outputs.
15W Output Power (No Temperature Derating).
Low Input / Output Noise.
Full Military Temperature Range.
Wideband PWM Control Loop.
Magnetic Feedback.
Low Profile Hermetic Package (0.405”).
Short Circuit and Overload Protection.
Constant Switching Frequency (500kHz).
True Hermetic Package (Parallel Seam Welded, Ce.
