LXT915 - Simple Quad Ethernet Repeater

Download the LXT915 datasheet PDF (LXT915QC included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for simple quad ethernet repeater.

Description

at any time, without notice.

Features

  • s s s s Four integrated 10BASE-T transceivers and one AUI transceiver on a single chip Six integrated LED drivers with four unique operational modes On-chip transmit and receive filtering Automatic polarity detection and correction s s s Synchronous or asynchronous InterRepeater Backplane supports “hot swapping” Inter-repeater backplane allows cascaded repeaters, linking 128 or more 10BASE-T ports Packaged in 64-pin PQFP As of January 15, 2001, this document replaces the Level One document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LXT915QC_Intel.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LXT915
Manufacturer Intel
File Size 499.14 KB
Description Simple Quad Ethernet Repeater
Datasheet download datasheet LXT915 Datasheet

📁 Similar Datasheet

  • LXT915 - Simple Quad Ethernet Repeater (Level One)
  • LXT914 - Flexible Quad Ethernet Repeater (Level One)
  • LXT916 - Multi-Port Hub Repeaters (Level One)
  • LXT917 - Multi-Port Hub Repeaters (Level One)
  • LXT918 - Multi-Segment Hub Repeater (Level One)
  • LXT901 - Universal Ethernet Interface Adapter (Level One)
  • LXT901A - (LXT901A / LXT907A) Universal Ethernet Interface Adapter (Level One)
  • LXT902 - Ethernet Twisted-Pair Media Attachment Unit (Level One)
  • LXT903 - 10Base-T Hub Transceiver (LEVEL ONE)
  • LXT904 - Ethernet Interface Adapter (Level One)
Other Datasheets by Intel
  • LXT901 - (LXT901 / LXT907) Universal 10 Base-T and AUI Transceivers
  • LXT905 - Universal 10Base-T Transceiver with 3.3V Support
  • LXT907 - (LXT901 / LXT907) Universal 10 Base-T and AUI Transceivers
  • LXT971A - Dual Speed Fast Ethernet PHY Transceiver
  • LXT9763 - Fast Ethernet 10/100 Hex Teansceiver with Full MII
  • LXT9860 - (LXT9880 / LXT9860) Advanced 10/100 Repeater
  • LXT9863 - (LXT9883 / LXT9863) Advanced 10/100 Unmanaged Repeater
  • LXT9880 - (LXT9880 / LXT9860) Advanced 10/100 Repeater

Full PDF Text Transcription

Click to expand full text

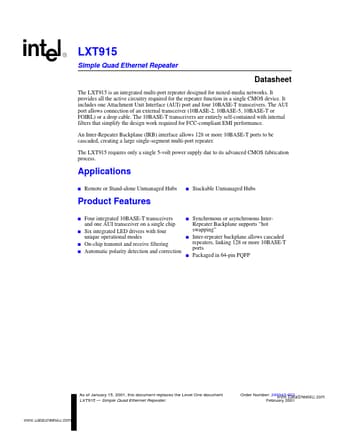

( DataSheet : www.DataSheet4U.com ) LXT915 Simple Quad Ethernet Repeater Datasheet The LXT915 is an integrated multi-port repeater designed for mixed-media networks. It provides all the active circuitry required for the repeater function in a single CMOS device. It includes one Attachment Unit Interface (AUI) port and four 10BASE-T transceivers. The AUI port allows connection of an external transceiver (10BASE-2, 10BASE-5, 10BASE-T or FOIRL) or a drop cable. The 10BASE-T transceivers are entirely self-contained with internal filters that simplify the design work required for FCC-compliant EMI performance. An Inter-Repeater Backplane (IRB) interface allows 128 or more 10BASE-T ports to be cascaded, creating a large single-segment multi-port repeater.
