IS64LV51216, IS61LV51216 - (IS61LV51216 / IS64LV51216) 512K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM

Integrated Silicon Solution

📥 Download Datasheet

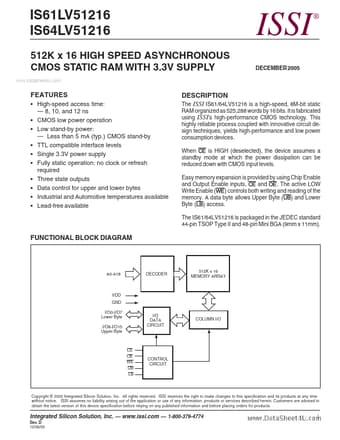

IS64LV51216 Datasheet Preview — This datasheet PDF includes multiple part numbers: IS64LV51216, IS61LV51216. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS64LV51216, IS61LV51216
Manufacturer	Integrated Silicon Solution
File Size	159.08 KB
Description	(IS61LV51216 / IS64LV51216) 512K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM
Datasheet	IS61LV51216_IntegratedSiliconSolution.pdf
Note	This datasheet PDF includes multiple part numbers: IS64LV51216, IS61LV51216. Please refer to the document for exact specifications by model.

IS64LV51216 Product details

Description

The ISSI IS61/64LV51216 is a high-speed, 8M-bit static RAM organized as 525,288 words by 16 bits.It is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices.When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Easy memory expansion is provided by using Chip Enable and O

Features

High-speed access time:.
8, 10, and 12 ns.
CMOS low power operation.
Low stand-by power:.
Less than 5 mA (typ. ) CMOS stand-by.
TTL compatible interface levels.
Single 3.3V power supply.
Fully static operation: no clock or refresh required.
Three state outputs.
Data control for upper and lower bytes.
Industrial and Automotive temperatures available.
Lead-free available.
