IS64LF25618A, IS61LF12832A - (IS6xxFxxxxxA) Synchronous Flow-through Static RAM

ISSI

📥 Download Datasheet

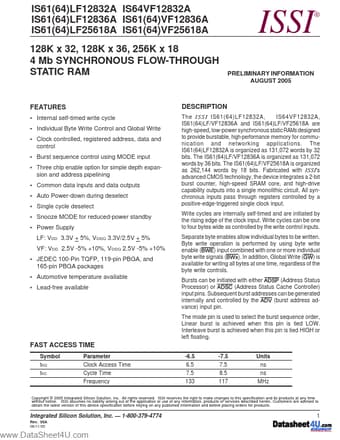

IS64LF25618A Datasheet Preview — This datasheet PDF includes multiple part numbers: IS64LF25618A, IS61LF12832A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS64LF25618A, IS61LF12832A
Manufacturer	ISSI
File Size	226.05 KB
Description	(IS6xxFxxxxxA) Synchronous Flow-through Static RAM
Datasheet	IS61LF12832A_ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS64LF25618A, IS61LF12832A. Please refer to the document for exact specifications by model.

IS64LF25618A Product details

Description

The ISSI IS61(64)LF12832A, FAST ACCESS TIME Symbol tKQ tKC Parameter Clock Access Time Cycle Time Frequency -6.5 6.5 7.5 133 -7.5 7.5 8.5 117 Units ns ns MHz Copyright © 2005 Integrated Silicon Solution, Inc.All rights reserved.ISSI reserves the right to make changes to this specification and its products at any time without notice.ISSI assumes no liability arising out of the application or use of any information, products or services described herein.Customers are advised to obtain the la

Features

Internal self-timed write cycle.
Individual Byte Write Control and Global Write.
Clock controlled, registered address, data and control.
Burst sequence control using MODE input.
Three chip enable option for simple depth expansion and address pipelining.
Common data inputs and data outputs.
Auto Power-down during deselect.
Single cycle deselect.
Snooze MODE for reduced-power standby.
Power Supply LF: VDD 3.
