IS62WV6416BLL, IS62WV6416ALL - ULTRA LOW POWER CMOS STATIC RAM

Integrated Silicon Solution

📥 Download Datasheet

IS62WV6416BLL Datasheet Preview — This datasheet PDF includes multiple part numbers: IS62WV6416BLL, IS62WV6416ALL. Please refer to the document for exact specifications by model.

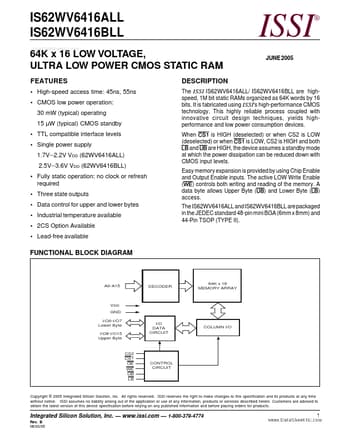

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IS62WV6416BLL, IS62WV6416ALL
Manufacturer	Integrated Silicon Solution
File Size	154.60 KB
Description	ULTRA LOW POWER CMOS STATIC RAM
Datasheet	IS62WV6416ALL_IntegratedSiliconSolution.pdf
Note	This datasheet PDF includes multiple part numbers: IS62WV6416BLL, IS62WV6416ALL. Please refer to the document for exact specifications by model.

IS62WV6416BLL Product details

Description

The ISSI IS62WV6416ALL/ IS62WV6416BLL are highspeed, 1M bit static RAMs organized as 64K words by 16 bits.

Features

High-speed access time: 45ns, 55ns.
CMOS low power operation: 30 mW (typical) operating 15 µW (typical) CMOS standby.
TTL compatible interface levels.
Single power supply 1.7V--2.2V VDD (62WV6416ALL) 2.5V--3.6V VDD (62WV6416BLL).
Fully static operation: no clock or refresh required.
Three state outputs.
Data control for upper and lower bytes.
Industrial temperature available.
2CS Option Available.
Lead-fre.
