IS45S81600E - 128Mb SYNCHRONOUS DRAM

Integrated Silicon Solution

📥 Download Datasheet

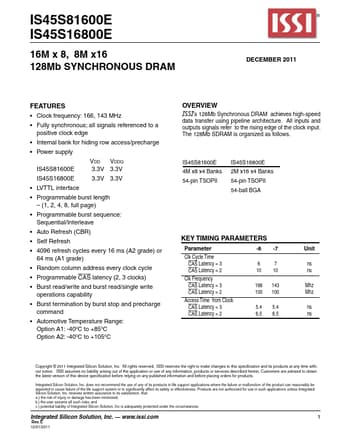

IS45S81600E Datasheet Preview — Preview of IS45S81600E PDF

Datasheet Details

Part number	IS45S81600E
Manufacturer	Integrated Silicon Solution
File Size	811.29 KB
Description	128Mb SYNCHRONOUS DRAM
Datasheet	IS45S81600E-IntegratedSiliconSolution.pdf

IS45S81600E Product details

Description

A0-A11 A0-A9 BA0, BA1 DQ0 to DQ7 CLK CKE CS RAS CAS Row Address Input Column Address Input Bank Select Address Data I/O System Clock Input Clock Enable Chip Select Row Address Strobe Command Column Address Strobe Command WE DQM Vdd Vss Vddq Vssq NC Write Enable Data Input/Output Mask Power Ground Power Supply for I/O Pin Ground for I/O Pin No Connection Integrated Silicon Solution, Inc. www.issi.com Rev. E 12/01/2011 3 IS45S81600E, IS45S16800E PI

Features

Clock frequency: 166, 143 MHz.
Fully synchronous; all signals referenced to a positive clock edge.
Internal bank for hiding row access/precharge.
Power supply IS45S81600E Vdd Vddq 3.3V 3.3V IS45S16800E 3.3V 3.3V.
LVTTL interface.
Programmable burst length.
(1, 2, 4, 8, full page).
Programmable burst sequence: Sequential/Interleave.
Auto Refresh (CBR).
Self R.
