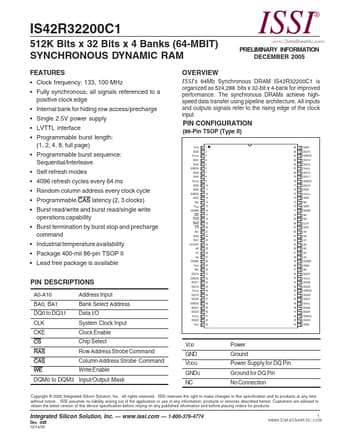

IS42R32200C1 - 512K Bits x 32 Bits x 4 Banks (64-MBIT) SYNCHRONOUS DYNAMIC RAM

Description

A0-A10 BA0, BA1 DQ0 to DQ31 CLK CKE CS RAS CAS WE Address Input Bank Select Address Data I/O System Clock Input Clock Enable Chip Select Row Address Strobe Command Column Address Strobe Command Write Enable DQ19 DQ20 GNDQ DQ21 DQ22 VDDQ DQ23 VDD VDD GND VDDQ GNDQ NC Power Ground Power Supply for

Features

  • Clock frequency: 133, 100 MHz.
  • Fully synchronous; all signals referenced to a positive clock edge.
  • Internal bank for hiding row access/precharge.
  • Single 2.5V power supply.
  • LVTTL interface.
  • Programmable burst length: (1, 2, 4, 8, full page).
  • Programmable burst sequence: Sequential/Interleave.
  • Self refresh modes.
  • 4096 refresh cycles every 64 ms.
  • Random column address every clock cycle.
  • Programmable.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IS42R32160D 512Mb SDRAM ISSI
IS42R32160F 512Mb SDRAM ISSI
IS42R16160D 256-MBIT SYNCHRONOUS DRAM ISSI
IS42R16320D 512Mb SDRAM ISSI
IS42R16320F 512Mb SDRAM ISSI

Other Datasheets by ISSI (now Infineon)

Part Number Description
IS42S16100 512K Words x 16Bits x 2 Banks Synchronous Dynamic RAM
IS42S16100E 512K Words x 16 Bits x 2 Banks 16Mb SYNCHRONOUS DYNAMIC RAM
IS42S16160 16Meg x16 256-MBIT SYNCHRONOUS DRAM
IS42S16160B 256-MBIT SYNCHRONOUS DRAM
IS42S16160D 256-MBIT SYNCHRONOUS DRAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
IS42R32200C1 512K Bits x 32 Bits x 4 Banks (64-MBIT) SYNCHRONOUS DYNAMIC RAM FEATURES • Clock frequency: 133, 100 MHz • Fully synchronous; all signals referenced to a positive clock edge • Internal bank for hiding row access/precharge • Single 2.
