IDTQS3257 - HIGH-SPEED CMOS QUICKSWITCH QUAD 2:1 MUX/DEMUX

Integrated Device

Datasheet Details

Part number	IDTQS3257
Manufacturer	Integrated Device
File Size	207.58 KB
Description	HIGH-SPEED CMOS QUICKSWITCH QUAD 2:1 MUX/DEMUX
Datasheet	IDTQS3257_IntegratedDeviceTechnology.pdf

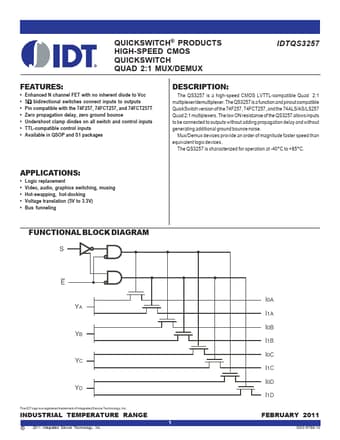

The QS3257 is a high-speed CMOS LVTTL-compatible Quad 2:1 multiplexer/demultiplexer.

Enhanced N channel FET with no inherent diode to Vcc 5Ω bidirectional switches connect inputs to outputs Pin compatible with the 74F257, 74FCT257, and 74FCT257T Zero propagation delay, zero ground bounce Undershoot clamp diodes on all switch and control inputs TTL-compatible control inputs Available in SOIC, QSOP, and S1 packages IDTQS3257.
