IDTQS3244 - HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH

Integrated Device

📥 Download Datasheet

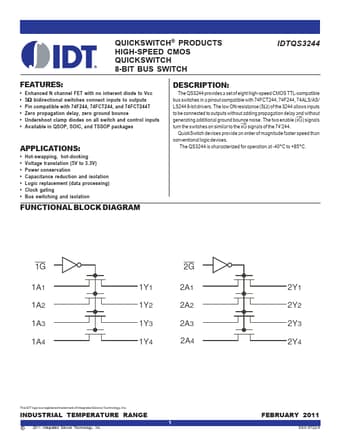

IDTQS3244 Datasheet Preview — Preview of IDTQS3244 PDF

Datasheet Details

Part number	IDTQS3244
Manufacturer	Integrated Device
File Size	206.30 KB
Description	HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH
Datasheet	IDTQS3244_IntegratedDeviceTechnology.pdf

IDTQS3244 Product details

Description

Hot-swapping, hot-docking Voltage translation (5V to 3.3V) Power conservation Capacitance reduction and isolation Logic replacement (data processing) Clock gating Bus switching and isolation FUNCTIONAL BLOCK DIAGRAM 1G 1A 1 1A 2 1A 3 1A 4 1Y 1 1Y 2 1Y 3 1Y 4 2G 2A 1 2A 2 2A 3 2A 4 2Y 1 2Y 2 2Y 3 2Y 4 The IDT logo is a registered trademark of Integrated Device Technology, Inc.INDUSTRIAL TEMPERATURE RANGE 1 c 1999 Integrated Device Technology, Inc.DECEMBER 1999 DSC-5722/3 IDTQS3244 HIGH

Features

Enhanced N channel FET with no inherent diode to Vcc 25Ω bidirectional switches connect inputs to outputs Pin compatible with 74F244, 74FCT244, and 74FCT244T Zero propagation delay, zero ground bounce Undershoot clamp diodes on all switch and control inputs Available in QSOP, SOIC, and TSSOP packages.
