IDT54FCT162245AT - FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVERS

Integrated Device

📥 Download Datasheet

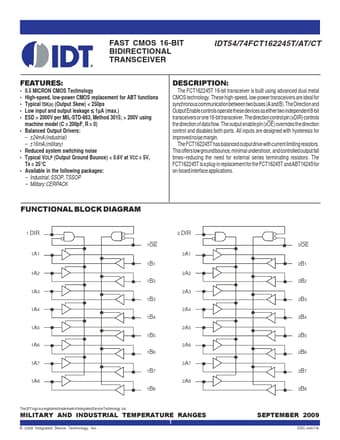

IDT54FCT162245AT Datasheet Preview — Preview of IDT54FCT162245AT PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT54FCT162245AT
Manufacturer	Integrated Device
File Size	69.14 KB
Description	FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVERS
Datasheet	IDT54FCT162245AT_IntegratedDeviceTechnology.pdf

IDT54FCT162245AT Product details

Description

The 16-bit transceivers are built using advanced dual metal CMOS technology.

Features

FCT16245T/AT/CT/ET:.
High drive outputs (-32mA IOH, 64mA IOL).
Power off disable outputs permit “live insertion”.
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
Features for FCT162245T/AT/CT/ET:.
Balanced Output Drivers: ±24mA (commercial), ±16mA (military).
Reduced system switching noise.
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C.
