IDT54FCT16245T - FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVER

IDT

📥 Download Datasheet

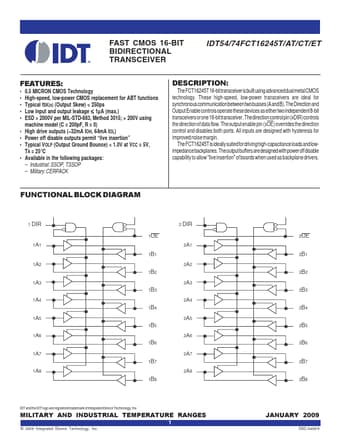

IDT54FCT16245T Datasheet Preview — Preview of IDT54FCT16245T PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT54FCT16245T
Manufacturer	IDT
File Size	69.05 KB
Description	FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVER
Datasheet	IDT54FCT16245T-IDT.pdf

IDT54FCT16245T Product details

Description

The FCT16245T 16-bit transceiver is built using advanced dual metal CMOS technology.

Features

0.5 MICRON CMOS Technology.
High-speed, low-power CMOS replacement for ABT functions.
Typical tSK(o) (Output Skew) < 250ps.
Low input and output leakage ≤ 1µA (max. ).
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0).
High drive outputs (.
32mA IOH, 64mA IOL).
Power off disable outputs permit “live insertion”.
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
