IDT54FCT16244ET - FAST CMOS 16-BIT BUFFER/LINE DRIVER

General Description

The 16-Bit Buffer/Line Driver is for bus interface or signal buffering applications requiring high speed and low power dissipation.

These devices have a flow through pin organization, and shrink packaging to simplify board layout.

All inputs are designed with hysteresis for improved noise margin.

Key Features

  • FCT16244T/AT/CT/ET:.
  • High drive outputs (-32mA IOH, 64mA IOL).
  • Power off disable outputs permit “live insertion”.
  • Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
  • Features for FCT162244T/AT/CT/ET:.
  • Balanced Output Drivers: ±24mA (commercial), ±16mA (military).
  • Reduced system switching noise.
  • Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C.
  • Features for FCT166244T/AT/CT:.
  • Light Dri.

📥 Download Datasheet

Datasheet Details

Part number IDT54FCT16244ET
Manufacturer Integrated Device
File Size 65.60 KB
Description FAST CMOS 16-BIT BUFFER/LINE DRIVER
Datasheet download datasheet IDT54FCT16244ET Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT54FCT16244AT FAST CMOS 16-BIT BUFFER/LINE DRIVER Renesas
IDT54FCT16244CT FAST CMOS 16-BIT BUFFER/LINE DRIVER Renesas
IDT54FCT16244T FAST CMOS 16-BIT BUFFER/LINE DRIVER Renesas
IDT54FCT16245AT FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVER IDT
IDT54FCT16245CT FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVER IDT

Other Datasheets by Integrated Device

Part Number Description
IDT54FCT16244AT FAST CMOS 16-BIT BUFFER/LINE DRIVER
IDT54FCT16244CT FAST CMOS 16-BIT BUFFER/LINE DRIVER
IDT54FCT16244T FAST CMOS 16-BIT BUFFER/LINE DRIVER
IDT54FCT16240AT FAST CMOS 16-BIT BUFFER/LINE DRIVER
IDT54FCT16240CT FAST CMOS 16-BIT BUFFER/LINE DRIVER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

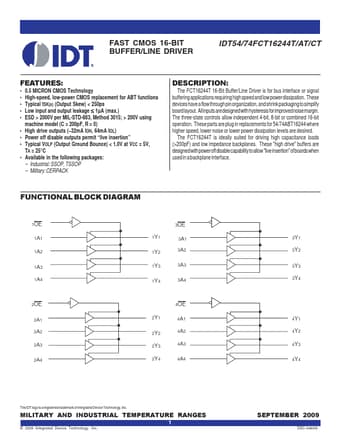

FAST CMOS 16-BIT BUFFER/LINE DRIVER Integrated Device Technology, Inc. IDT54/74FCT16244T/AT/CT/ET IDT54/74FCT162244T/AT/CT/ET IDT54/74FCT166244T/AT/CT IDT54/74FCT162H244T/AT/CT/ET FEATURES: • Common features: – 0.5 MICRON CMOS Technology – High-speed, low-power CMOS replacement for ABT functions – Typical tSK(o) (Output Skew) < 250ps – Low input and output leakage ≤ 1µ A (max.) – ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) – Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack – Extended commercial range of -40°C to +85°C • Features for FCT16244T/AT/CT/ET: – High drive outputs (-32mA IOH, 64mA IOL) – Power off disable outputs permit “live insertion” – Typical VOLP (Output Ground Bounce) < 1.
