IDT29FCT53B - FAST CMOS OCTAL REGISTERED TRANSCEIVERS

Integrated Device

📥 Download Datasheet

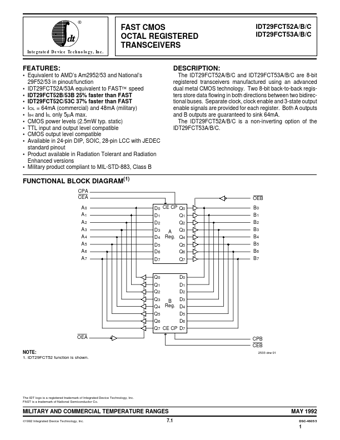

IDT29FCT53B Datasheet Preview — Preview of IDT29FCT53B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT29FCT53B
Manufacturer	Integrated Device
File Size	62.76 KB
Description	FAST CMOS OCTAL REGISTERED TRANSCEIVERS
Datasheet	IDT29FCT53B_IntegratedDeviceTechnology.pdf

IDT29FCT53B Product details

Description

IDT29FCT52A/B/C IDT29FCT53A/B/C Integrated Device Technology, Inc.

Features

Equivalent to AMD’s Am2952/53 and National’s 29F52/53 in pinout/function.
IDT29FCT52A/53A equivalent to FAST™ speed.
IDT29FCT52B/53B 25% faster than FAST.
IDT29FCT52C/53C 37% faster than FAST.
IOL = 64mA (commercial) and 48mA (military).
IIH and IIL only 5µA max.
CMOS power levels (2.5mW typ. static).
TTL input and output level compatible.
CMOS output level compatible.
Available in 24-pin DIP, SOIC, 28-p.
