IDT29FCT520AT, IDT29FCT521DT Datasheet - IDT

IDT29FCT520AT MULTILEVEL PIPELINE REGISTERS

The IDT29FCT520AT/BT/CT/DT and IDT29FCT521AT/ BT/CT/DT each contain four 8-bit positive edge-triggered registers. These may be operated as a dual 2-level or as a single 4-level pipeline. A single 8-bit input is provided and any of the four registers is available at the 8-bit, 3-state output. These .

IDT29FCT520AT Features

* A, B, C and D speed grades

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* High drive outputs (-15mA IOH, 48mA IOL)

* Meets or exceeds

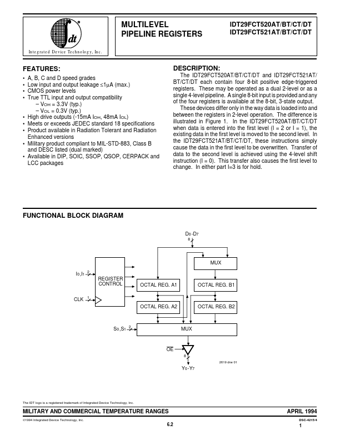

IDT29FCT521DT_IntegratedDeviceTechnology.pdf

IDT29FCT520AT Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT29FCT520AT, IDT29FCT521DT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT29FCT520AT, IDT29FCT521DT

Manufacturer:

IDT

File Size:

93.69 KB

Description:

Multilevel pipeline registers.

Note:

This datasheet PDF includes multiple part numbers: IDT29FCT520AT, IDT29FCT521DT.
Please refer to the document for exact specifications by model.
