QS532805B, QS532805 - GUARANTEED LOW SKEW 3.3V CMOS CLOCK DRIVER/BUFFER

Integrated Device Technology

Datasheet Details

Part number	QS532805B, QS532805
Manufacturer	Integrated Device Technology
File Size	109.30 KB
Description	GUARANTEED LOW SKEW 3.3V CMOS CLOCK DRIVER/BUFFER
Datasheet	QS532805_IntegratedDeviceTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: QS532805B, QS532805. Please refer to the document for exact specifications by model.

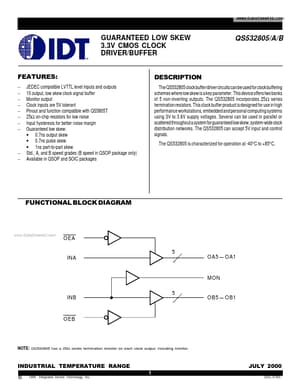

The QS532805 clock buffer/driver circuits can be used for clock buffering schemes where low skew is a key parameter.

JEDEC compatible LVTTL level inputs and outputs 10 output, low skew clock signal buffer Monitor output Clock inputs are 5V tolerant Pinout and function compatible with QS5805T 25Ω on-chip resistors for low noise Input hysteresis for better noise margin Guaranteed low skew:.
0.7ns output skew.
0.7ns pulse skew.
1ns part-to-part skew Std. , A, and B speed grades (B speed in QSOP package only).
