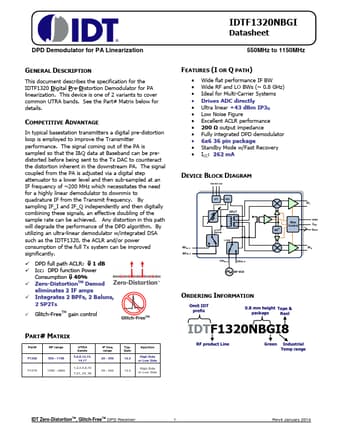

IDTF1320NBGI Datasheet Preview — Preview of IDTF1320NBGI PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDTF1320NBGI
Manufacturer	Integrated Device Technology
File Size	1.74 MB
Description	DPD Demodulator
Datasheet	IDTF1320NBGI-IntegratedDeviceTechnology.pdf

IDTF1320NBGI Product details

Description

This document describes the specification for the IDTF1320 Digital Pre-Distortion Demodulator for PA linearization.

Features

(I OR Q PATH).
Wide flat performance IF BW.
Wide RF and LO BWs (~ 0.8 GHz).
Ideal for Multi-Carrier Systems.
Drives ADC directly.
Ultra linear +43 dBm IP3O.
Low Noise Figure.
Excellent ACLR performance.
200 Ω output impedance.
Fully integrated DPD demodulator.
6x6 36 pin package.
Standby Mode w/Fast Recovery.
ICC: 262 mA DEVICE BLOCK.
