IDT74FCT2240CT, IDT74FCT2240AT - FAST CMOS OCTAL BUFFER/LINE DRIVER

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IDT74FCT2240CT, IDT74FCT2240AT. Please refer to the document for exact specifications by model.

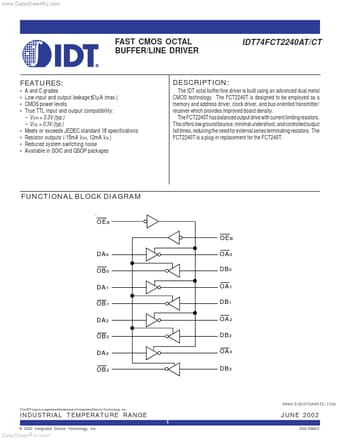

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number IDT74FCT2240CT, IDT74FCT2240AT
Manufacturer Integrated Device Technology
File Size 196.06 KB
Description FAST CMOS OCTAL BUFFER/LINE DRIVER
Datasheet download datasheet IDT74FCT2240AT_IntegratedDeviceTechnology.pdf
Note This datasheet PDF includes multiple part numbers: IDT74FCT2240CT, IDT74FCT2240AT.
Please refer to the document for exact specifications by model.

IDT74FCT2240CT Product details

Description

A and C grades Low input and output leakage ≤1µA (max.) CMOS power levels True TTL input and output compatibility: VOH = 3.3V (typ.) VOL = 0.3V (typ.) Meets or exceeds JEDEC standard 18 specifications Resistor outputs (-15mA IOH, 12mA IOL) Reduced system switching noise Available in SOIC and QSOP packages The IDT octal buffer/line driver is built using an advanced dual metal CMOS technology.The FCT2240T is designed to be employed as a memory and address driver, clock driv
