IDT723632 - CMOS Bidirectional SyncFIFO memory

Name: IDT723632
SKU: IDT723632-248367

Integrated Device Technology

📥 Download Datasheet

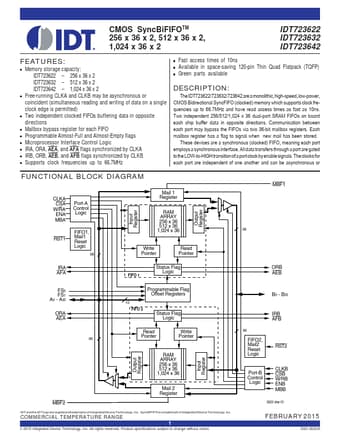

IDT723632 Datasheet Preview — Preview of IDT723632 PDF

Datasheet Details

Part number	IDT723632
Manufacturer	Integrated Device Technology
File Size	175.38 KB
Description	CMOS Bidirectional SyncFIFO memory
Datasheet	IDT723632_IntegratedDeviceTechnology.pdf

IDT723632 Product details

Description

The IDT723622/723632/723642 is a monolithic, high-speed, low-power, CMOS Bidirectional SyncFIFO (clocked) memory which supports clock frequencies up to 67MHz and have read access times as fast as 11ns.

Features

Free-running CLKA and CLKB may be asynchronous or coincident (simultaneous reading and writing of data on a single clock edge is permitted).
Two independent clocked FIFOs buffering data in opposite directions.
Memory storage capacity: IDT723622.
256 x 36 x 2 IDT723632.
512 x 36 x 2 IDT723642.
1024 x 36 x 2.
Mailbox bypass register for each FIFO.
Programmable Almost-Full and Almost-Empty flags.
Microprocessor Interface C.
