IDT54FCT3827B - 3.3V CMOS 10-BIT BUFFERS

Integrated Device Technology

📥 Download Datasheet

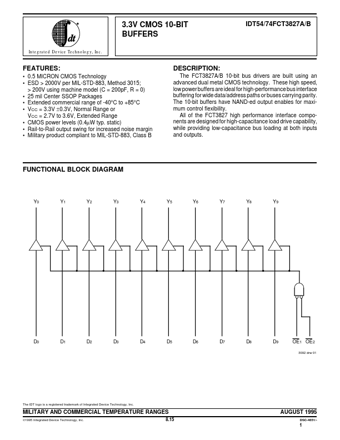

IDT54FCT3827B Datasheet Preview — Preview of IDT54FCT3827B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDT54FCT3827B
Manufacturer	Integrated Device Technology
File Size	102.44 KB
Description	3.3V CMOS 10-BIT BUFFERS
Datasheet	IDT54FCT3827B_IntegratedDeviceTechnology.pdf

IDT54FCT3827B Product details

Description

The FCT3827A/B 10-bit bus drivers are built using an advanced dual metal CMOS technology.

Features

0.5 MICRON CMOS Technology.
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0).
25 mil Center SSOP Packages.
Extended commercial range of -40°C to +85°C.
VCC = 3.3V ± 0.3V, Normal Range or VCC = 2.7V to 3.6V, Extended Range.
CMOS power levels (0.4µW typ. static).
Rail-to-Rail output swing for increased noise margin.
Military product compliant to MIL-STD-883, Class B.
