ICS83904-02 - CRYSTAL-TOLVCMOS/LVTTL FANOUT BUFFER

Integrated Device Technology

📥 Download Datasheet

ICS83904-02 Datasheet Preview — Preview of ICS83904-02 PDF

Datasheet Details

Part number	ICS83904-02
Manufacturer	Integrated Device Technology
File Size	347.49 KB
Description	CRYSTAL-TOLVCMOS/LVTTL FANOUT BUFFER
Datasheet	ICS83904-02_IntegratedDeviceTechnology.pdf

ICS83904-02 Product details

Description

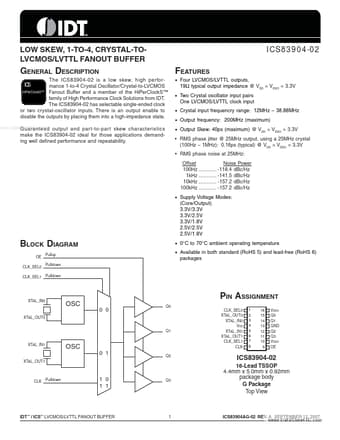

The ICS83904-02 is a low skew, high perforIC S mance 1-to-4 Crystal Oscillator/Crystal-to-LVCMOS HiPerClockS™ Fanout Buffer and a member of the HiPerClockS™ family of High Performance Clock Solutions from IDT.

Features

Four LVCMOS/LVTTL outputs, 19Ω typical output impedance @ VDD = VDDO = 3.3V.
Two Crystal oscillator input pairs One LVCMOS/LVTTL clock input.
Crystal input frequencry range: 12MHz.
38.88MHz.
Output frequency: 200MHz (maximum).
Output Skew: 40ps (maximum) @ VDD = VDDO = 3.3V.
RMS phase jitter @ 25MHz output, using a 25MHz crystal (100Hz.
1MHz): 0.16ps (typical) @ VDD = VDDO = 3.3V.
RMS phase noise at 25MHz: Offset N.
