ICS83948I - 1-TO-12 DIFFERENTIALTO-LVCMOS/LVTTL FANOUT BUFFER

Integrated Device Technology

📥 Download Datasheet

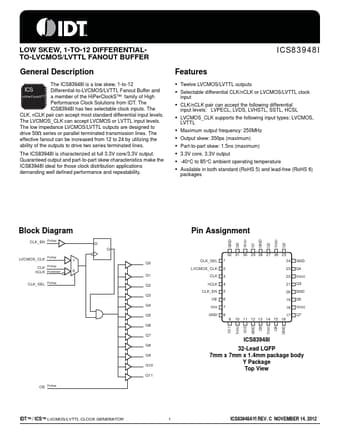

ICS83948I Datasheet Preview — Preview of ICS83948I PDF

Datasheet Details

Part number	ICS83948I
Manufacturer	Integrated Device Technology
File Size	116.44 KB
Description	1-TO-12 DIFFERENTIALTO-LVCMOS/LVTTL FANOUT BUFFER
Datasheet	ICS83948I-IntegratedDeviceTechnology.pdf

ICS83948I Product details

Description

The ICS83948I is a low skew, 1-to-12 ICS Differential-to-LVCMOS/LVTTL Fanout Buffer and HiPerClockS™ a member of the HiPerClockS™ family of High Performance Clock Solutions from IDT.The ICS83948I has two selectable clock inputs.The CLK, nCLK pair can accept most standard differential input levels.The LVCMOS_CLK can accept LVCMOS or LVTTL input levels.The low impedance LVCMOS/LVTTL outputs are designed to drive 50 series or parallel terminated transmission lines.The effective fanout can be

Features

Twelve LVCMOS/LVTTL outputs.
Selectable differential CLK/nCLK or LVCMOS/LVTTL clock input.
CLK/nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL.
LVCMOS_CLK supports the following input types: LVCMOS, LVTTL.
Maximum output frequency: 250MHz.
Output skew: 350ps (maximum).
Part-to-part skew: 1.5ns (maximum).
3.3V core, 3.3V output.
-40°C to 85°C ambient operating temperatu.
