ICS954204 - Programmable Timing Control HubTM for Mobile P4TM Systems

Integrated Circuit Systems

📥 Download Datasheet

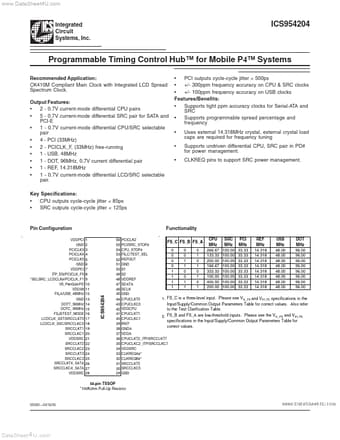

ICS954204 Datasheet Preview — Preview of ICS954204 PDF

Datasheet Details

Part number	ICS954204
Manufacturer	Integrated Circuit Systems
File Size	373.52 KB
Description	Programmable Timing Control HubTM for Mobile P4TM Systems
Datasheet	ICS954204_IntegratedCircuitSystems.pdf

ICS954204 Product details

Description

PIN # PIN NAME 1 2 3 4 5 6 7 8 VDDPCI GND PCICLK3 PCICLK4 PCICLK5 GND VDDPCI ITP_EN/PCICLK_F0 PIN TYPE DESCRIPTION PWR PWR OUT OUT OUT PWR PWR I/O Power supply for PCI clocks, nominal 3.3V Ground pin.

Features

2 - 0.7V current-mode differential CPU pairs.
5 - 0.7V current-mode differential SRC pair for SATA and PCI-E.
1 - 0.7V current-mode differential CPU/SRC selectable pair.
4 - PCI (33MHz).
2 - PCICLK_F, (33MHz) free-running.
1 - USB, 48MHz.
1 - DOT, 96MHz, 0.7V current differential pair.
1 - REF, 14.318MHz.
1 - 0.7V current-mode differential LCD/SRC selectable pair. Key Specifications:.
