ICS954101 - Programmable Timing Control Hub for Desktop P4 Systems

Integrated Circuit Systems

📥 Download Datasheet

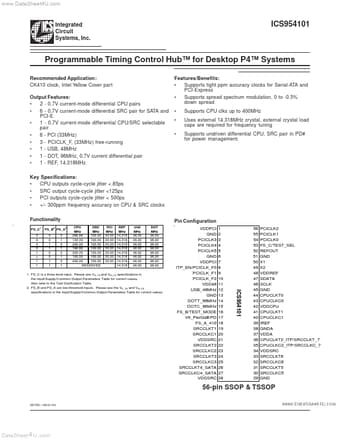

ICS954101 Datasheet Preview — Preview of ICS954101 PDF

Datasheet Details

Part number	ICS954101
Manufacturer	Integrated Circuit Systems
File Size	305.96 KB
Description	Programmable Timing Control Hub for Desktop P4 Systems
Datasheet	ICS954101_IntegratedCircuitSystems.pdf

ICS954101 Product details

Description

Pin # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 PIN NAME VDDPCI GND PCICLK3 PCICLK4 PCICLK5 GND VDDPCI ITP_EN/PCICLK_F0 PCICLK_F1 PCICLK_F2 VDD48 USB_48MHz GND DOTT_96MHz DOTC_96MHz FS_B/TEST_MODE PIN TYPE PWR PWR OUT OUT OUT PWR PWR I/O OUT OUT PWR OUT PWR OUT OUT IN DESCRIPTION Power supply for PCI clocks, nominal 3.3V Ground pin.

Features

2 - 0.7V current-mode differential CPU pairs.
6 - 0.7V current-mode differential SRC pair for SATA and PCI-E.
1 - 0.7V current-mode differential CPU/SRC selectable pair.
6 - PCI (33MHz).
3 - PCICLK_F, (33MHz) free-running.
1 - USB, 48MHz.
1 - DOT, 96MHz, 0.7V current differential pair.
1 - REF, 14.318MHz Key Specifications:.
CPU outputs cycle-cycle jitter < 85ps.
SRC output cycle-cycle jitter.
