ICS873990 - LOW VOLTAGE LVCMOS/ CRYSTAL-TO-LVPECL/ECL CLOCK GENERATOR

Name: ICS873990
SKU: ICS873990-670649

Integrated Circuit Systems

📥 Download Datasheet

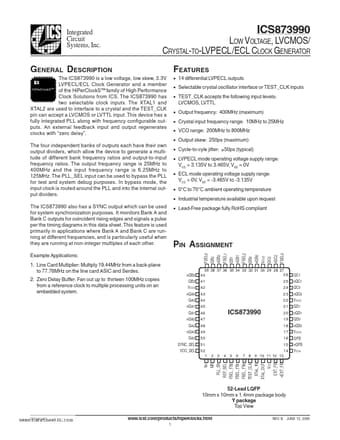

ICS873990 Datasheet Preview — Preview of ICS873990 PDF

Datasheet Details

Part number	ICS873990
Manufacturer	Integrated Circuit Systems
File Size	189.79 KB
Description	LOW VOLTAGE LVCMOS/ CRYSTAL-TO-LVPECL/ECL CLOCK GENERATOR
Datasheet	ICS873990_IntegratedCircuitSystems.pdf

ICS873990 Product details

Description

The ICS873990 is a low voltage, low skew, 3.3V LVPECL/ECL Clock Generator and a member HiPerClockS™ of the HiPerClockS™ family of High Performance Clock Solutions from ICS.

Features

14 differential LVPECL outputs.
Selectable crystal oscillator interface or TEST_CLK inputs.
TEST_CLK accepts the following input levels: LVCMOS, LVTTL.
Output frequency: 400MHz (maximum).
Crystal input frequency range: 10MHz to 25MHz.
VCO range: 200MHz to 800MHz.
Output skew: 250ps (maximum).
Cycle-to-cyle jitter: ±50ps (typical).
LVPECL mode operating voltage supply range: VCC = 3.135V to 3.465V, VEE = 0V.
