ICS84330-03 CRYSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER

ICS84330-03 Description

Integrated Circuit Systems, Inc.ICS84330-03 700MHZ, LOW JITTER, CRYSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER .
The ICS84330-03 is a general purpose, dual output high frequency synthesizer and a memHiPerClockS™ ber of the HiPerClockS™ family of High Performance.

ICS84330-03 Features

* Fully integrated PLL, no external loop filter requirements Two differential 3.3V LVPECL output Crystal oscillator interface: 10MHz to 25MHz Output frequency range: 41.67MHz to 700MHz VCO range: 250MHz to 700MHz Parallel or I2C int

ICS84330-03 Applications

* which require high performance.
* BLOCK DIAGRAM OE Pullup VCO_SEL Pullup XTAL_IN PIN ASSIGNMENT nQ0 nQ1 SCL SDA 1 2 3 4 32 31 30 29 28 27 26 25 24 23 VCC VCC VEE VEE Q0 Q1 VCO_SEL N1 N0 M8 M7 M6 M5 M4 OSC 1 ADDR_SEL VCCA ICS8

📥 Download Datasheet

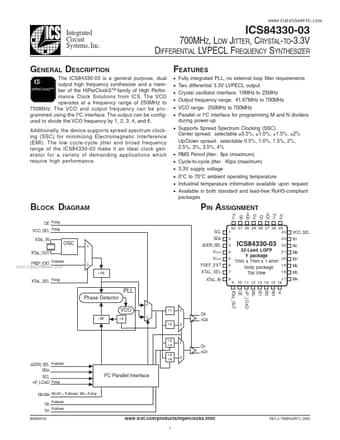

Preview of ICS84330-03 PDF
