ICS84330CVILF - Crystal-to-LVPECL Frequency Synthesizer

Download the ICS84330CVILF datasheet PDF (ICS84330CI included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for crystal-to-lvpecl frequency synthesizer.

Description

The 84330CI is a general purpose, single output high frequency synthesizer.

The VCO operates at a frequency range of 250MHz to 720MHz.

The VCO and output frequency can be programmed using the serial or parallel interfaces to the configuration logic.

Features

  • Fully integrated PLL, no external loop filter requirements.
  • One differential 3.3V LVPECL output.
  • Crystal oscillator interface: 10MHz to 25MHz.
  • Output frequency range: 31.25MHz to 720MHz.
  • VCO range: 250MHz to 720MHz.
  • Parallel or serial interface for programming M and N dividers during power-up.
  • RMS period jitter: 6ps (maximum).
  • Cycle-to-cycle jitter: 40ps (maximum).
  • 3.3V supply voltage.
  • -40°C to 85°C ambien.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ICS84330CI-Renesas.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • ICS84330C - CRYSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER (Integrated Circuit Systems)
  • ICS84330 - CRYSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER (Integrated Circuit Systems)
  • ICS84330-01 - CRYSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER (Integrated Circuit Systems)
  • ICS84330-02 - CRYSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER (Integrated Circuit Systems)
  • ICS84330-03 - CRYSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER (Integrated Circuit Systems)
  • ICS843301I-108 - 2.5V LVPECL 75MHZ FREQUENCY SYNTHESIZER W/SSC (Integrated Device Technology)
  • ICS843-106 - LVPECL DUAL OUTPUT OSCILLATOR (Integrated Circuit Systems)
  • ICS843-75 - LVPECL DUAL OUTPUT OSCILLATOR (Integrated Circuit Systems)
  • ICS8430-111 - LOW JITTER DIFFERENTIAL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER (Integrated Circuit Systems)
  • ICS8430-51 - LOW JITTER LVCMOS/LVTTL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER (Integrated Circuit Systems)
Other Datasheets by Renesas
  • ICS84330C - Single output high frequency synthesizer
  • ICS84330CI - Crystal-to-LVPECL Frequency Synthesizer
  • ICS84330CYIL - Crystal-to-LVPECL Frequency Synthesizer
  • ICS84330-02 - Crystal-to-3.3V Differential LVPECL Frequency Synthesizer
  • ICS8432-101 - DIFFERENTIAL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER
  • ICS8432-51 - CYRSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER
  • ICS8432I-101 - Differential-to-3.3V LVPECL Frequency Synthesizer
  • ICS840022I-02 - Crystal-to-LVCMOS/LVTTL Clock Generator

Full PDF Text Transcription

Click to expand full text

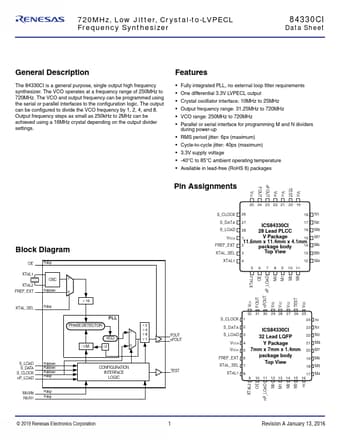

720MHz, Low Jitter, Crystal-to-LVPECL Frequency Synthesizer 84330CI Data Sheet General Description The 84330CI is a general purpose, single output high frequency synthesizer. The VCO operates at a frequency range of 250MHz to 720MHz. The VCO and output frequency can be programmed using the serial or parallel interfaces to the configuration logic. The output can be configured to divide the VCO frequency by 1, 2, 4, and 8. Output frequency steps as small as 250kHz to 2MHz can be achieved using a 16MHz crystal depending on the output divider settings. Features • Fully integrated PLL, no external loop filter requirements • One differential 3.3V LVPECL output • Crystal oscillator interface: 10MHz to 25MHz • Output frequency range: 31.
