ICS8344-01 - 1-TO-24 DIFFERENTIAL-TO-LVCMOS FANOUT BUFFER

Name: ICS8344-01
SKU: ICS8344-01-631665

Integrated Circuit Systems

📥 Download Datasheet

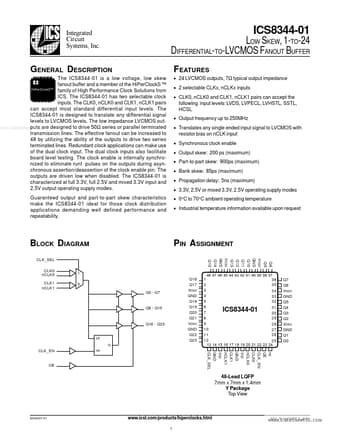

ICS8344-01 Datasheet Preview — Preview of ICS8344-01 PDF

Datasheet Details

Part number	ICS8344-01
Manufacturer	Integrated Circuit Systems
File Size	152.34 KB
Description	1-TO-24 DIFFERENTIAL-TO-LVCMOS FANOUT BUFFER
Datasheet	ICS8344-01_IntegratedCircuitSystems.pdf

ICS8344-01 Product details

Description

The ICS8344-01 is a low voltage, low skew fanout buffer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solutions from ICS.

Features

24 LVCMOS outputs, 7Ω typical output impedance.
2 selectable CLKx, nCLKx inputs.
CLK0, nCLK0 and CLK1, nCLK1 pairs can accept the following input levels: LVDS, LVPECL, LVHSTL, SSTL, HCSL.
Output frequency up to 250MHz.
Translates any single ended input signal to LVCMOS with resistor bias on nCLK input.
Synchronous clock enable.
Output skew: 200 ps (maximum).
Part-to-part skew: 900ps (maximum).
Bank skew: 85ps (maxi.
