IS62LV12816LL - ULTRA LOW POWER CMOS STATIC RAM

Integrated Circuit Solution

📥 Download Datasheet

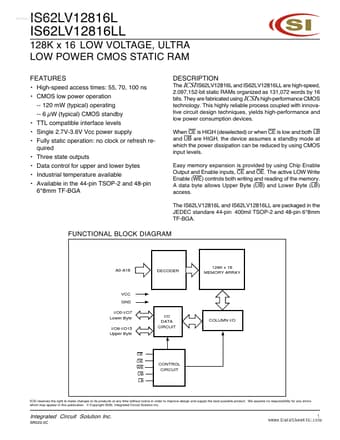

IS62LV12816LL Datasheet Preview — Preview of IS62LV12816LL PDF

Datasheet Details

Part number	IS62LV12816LL
Manufacturer	Integrated Circuit Solution
File Size	499.93 KB
Description	ULTRA LOW POWER CMOS STATIC RAM
Datasheet	IS62LV12816LL_IntegratedCircuitSolution.pdf

IS62LV12816LL Product details

Description

The 1+51 IS62LV12816L and IS62LV12816LL are high-speed, 2.097,152-bit static RAMs organized as 131,072 words by 16 bits.They are fabricated using 1+51's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices.When CE is HIGH (deselected) or when CE is low and both LB and UB are HIGH, the device assumes a standby mode at which the power dissipation can be reduced by using CMOS in

Features

High-speed access times: 55, 70, 100 ns CMOS low power operation -- 120 mW (typical) operating -- 6 µW (typical) CMOS standby TTL compatible interface levels Single 2.7V-3.6V Vcc power supply Fully static operation: no clock or refresh required Three state outputs Data control for upper and lower bytes Industrial temperature available Available in the 44-pin TSOP-2 and 48-pin 6.
8mm TF-BGA.
