IS62LV12816BLL - ULTRA LOW POWER CMOS STATIC RAM

ISSI

📥 Download Datasheet

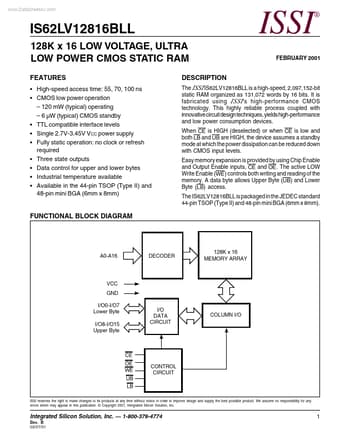

IS62LV12816BLL Datasheet Preview — Preview of IS62LV12816BLL PDF

Datasheet Details

Part number	IS62LV12816BLL
Manufacturer	ISSI
File Size	120.44 KB
Description	ULTRA LOW POWER CMOS STATIC RAM
Datasheet	IS62LV12816BLL_ISSI.pdf

IS62LV12816BLL Product details

Description

® FEBRUARY 2001 The ISSI IS62LV12816BLL is a high-speed, 2,097,152-bit static RAM organized as 131,072 words by 16 bits.It is fabricated using ISSI 's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices.When CE is HIGH (deselected) or when CE is low and both LB and UB are HIGH, the device assumes a standby mode at which the power dissipation can be reduced down with CMOS i

Features

High-speed access time: 55, 70, 100 ns.
CMOS low power operation.
120 mW (typical) operating.
6 µW (typical) CMOS standby.
TTL compatible interface levels.
Single 2.7V-3.45V VCC power supply.
Fully static operation: no clock or refresh required.
Three state outputs.
Data control for upper and lower bytes.
Industrial temperature available.
Available in the 44-pin TSOP (Type II) and 48-pin mini BGA.
