IN80C52N, IN80C32N CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER

IN80C52N Description

IN80C32N/IN80C52N CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER The 80C32/80C52 is a high-performance microcontroller fabricated with high-density CMOS techn.

IN80C52N Features

* 8032/8052 compatible  8k x 8 ROM (80C52)  ROMless (80C32)  256 x 8 RAM  Three 16-bit counter/timers  Full duplex serial channel  Boolean processor
* Memory addressing capability 64k ROM and 64k RAM
* Power control modes:  Idle mode  Power-down mode

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IN80C52N, IN80C32N. Please refer to the document for exact specifications by model.

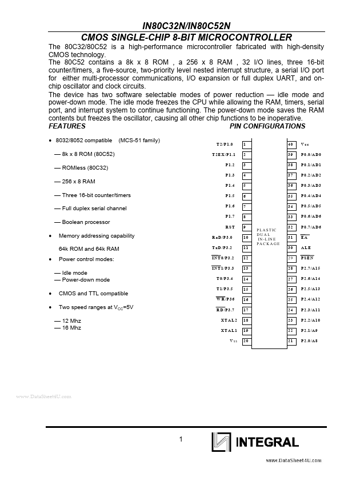

datasheet Preview Page 2

Datasheet Details

Part number
IN80C52N, IN80C32N
Manufacturer
Integral
File Size
139.16 KB
Datasheet
IN80C32N_Integral.pdf
Description
CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER
Note
This datasheet PDF includes multiple part numbers: IN80C52N, IN80C32N.
Please refer to the document for exact specifications by model.
