IN80C39N CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER

IN80C39N Description

IN80C39N/IN80C49N CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER The 80C39/80C49 is a high-performance microcontroller fabricated with high-density CMOS techn.

IN80C39N Features

* 8039/8049 compatible  2k x 8 ROM (80C49)  ROMless (80C39)  128 x 8 RAM  8-bit counter/timers
* Memory addressing capability  4k ROM and 4k RAM
* Power control modes:  Idle mode  Power-down mode
* CMOS and TTL compatible Speed range at VCC=5V  8 MHz

📥 Download Datasheet

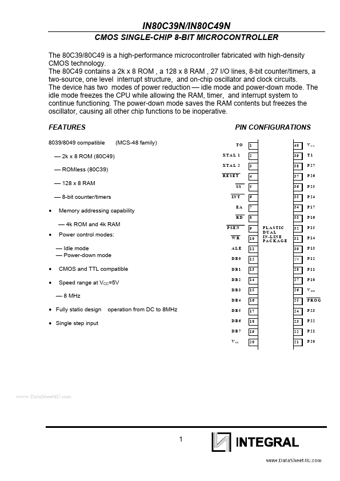

Preview of IN80C39N PDF
datasheet Preview Page 2

Datasheet Details

Part number
IN80C39N
Manufacturer
Integral
File Size
133.84 KB
Datasheet
IN80C39N_Integral.pdf
Description
CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER
