IL9200AN - generator DTMF of signals

Integral

📥 Download Datasheet

IL9200AN Datasheet Preview — Preview of IL9200AN PDF

Datasheet Details

Part number	IL9200AN
Manufacturer	Integral
File Size	158.57 KB
Description	generator DTMF of signals
Datasheet	IL9200AN-Integral.pdf

IL9200AN Product details

Description

Pin Number 01 02 03 04 05 06 07 08 Pin Name (Symbol) CE Х2 Х1 GND CLK DATA DTMF Ucc Description Chip select (active low) Oscillator output Oscillator input Common pin Clock input for serial mode Data input for serial mode Output of the DTMF signal Voltage supply pin X1 X2 DATA CLK 3,58 MHz Crystal/Resonator Oscillator Serial Data Input Circuit DTMF Generator Control Circuit CE Fig.3 Block diagram DTMF Ver.00/13.04.2009 2 Table 2 Absolute maximum ratings Symbol UCC

Features

Supply voltage Ucc from 2,0 to 5,5 V;.
Serial mode of data input;.
Clock frequency 3,58 MHz;.
Low standby current consumption;.
Internal timer for writing;.
Low total harmonic distortion ;.
Operating temperature from -20 to 75 oC 08 01 D - suffix SO-package Fig. 1.

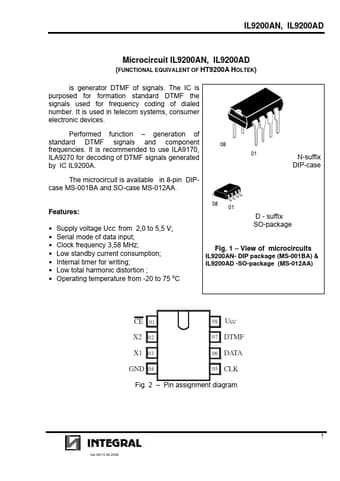

View of microcircuits IL9200AN- DIP package (MS-001BA) & IL9200AD -SO-package (MS-012AA) CE 01 08 Ucc X2 02 07 DTMF X1 03 06 DATA GND 04 05 CLK Fig.
