XDP700-002 - Hot-swap Controller

Product Overview

Infineon

Part number	XDP700-002
Manufacturer	Infineon
File Size	1.99 MB
Description	Hot-swap Controller
Datasheet	XDP700-002 Datasheet

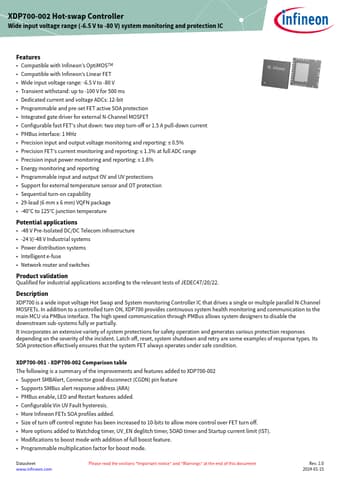

Additional preview pages of the XDP700-002 datasheet.

XDP700 is a wide input voltage Hot Swap and System monitoring Controller IC that drives a single or multiple parallel N-Channel MOSFETs.

Compatible with Infineon’s OptiMOSTM.
Compatible with Infineon’s Linear FET.
Wide input voltage range: -6.5 V to -80 V.
Transient withstand: up to -100 V for 500 ms.
Dedicated current and voltage ADCs: 12-bit.
Programmable and pre-set FET active SOA protection.
Integrated gate driver for external N-Channel MOSFET.
Configurable fast FET's shut down: two step turn-off or 1.5 A pull-down current.
PMBus interface: 1 MH.
