XDPE12284C - Digital Multi-phase Controller

Name: XDPE12284C
SKU: XDPE12284C-1578538

Infineon

📥 Download Datasheet

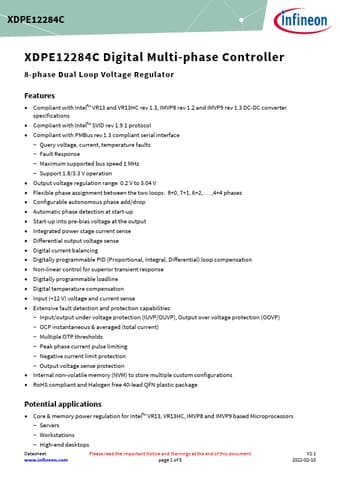

XDPE12284C Datasheet Preview — Preview of XDPE12284C PDF

Datasheet Details

Part number	XDPE12284C
Manufacturer	Infineon
File Size	198.02 KB
Description	Digital Multi-phase Controller
Datasheet	XDPE12284C-Infineon.pdf

XDPE12284C Product details

Description

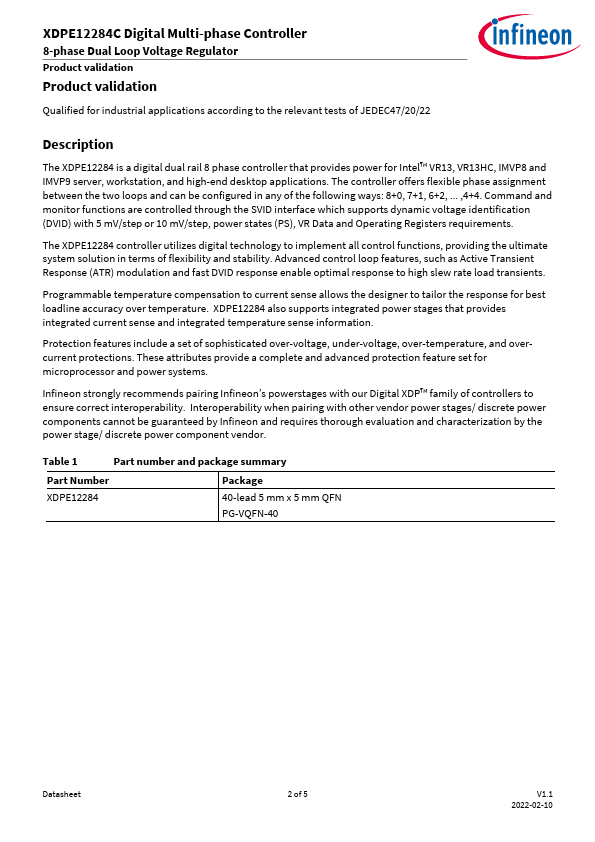

The XDPE12284 is a digital dual rail 8 phase controller that provides power for Intel™ VR13, VR13HC, IMVP8 and IMVP9 server, workstation, and high-end desktop applications.

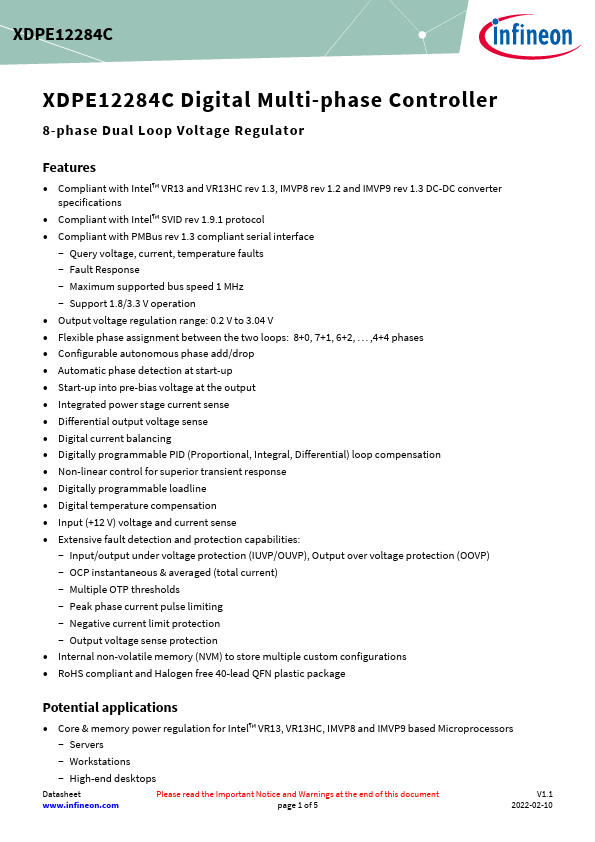

Features

Compliant with Intel™ VR13 and VR13HC rev 1.3, IMVP8 rev 1.2 and IMVP9 rev 1.3 DC-DC converter specifications.
Compliant with Intel™ SVID rev 1.9.1 protocol.
Compliant with PMBus rev 1.3 compliant serial interface.
Query voltage, current, temperature faults.
Fault Response.
Maximum supported bus speed 1 MHz.
Support 1.8/3.3 V operation.
Output voltage regulation range: 0.2 V to 3.04 V.
Flexible phase assignment between the two loops:.
