TLE8457A - LIN Transceiver

TLE8457A Description

TLE8457A / TLE8457B LIN Transceiver with integrated voltage regulator 1 Overview .
The TLE8457A / TLE8457B is a monolithic integrated LIN transceiver and low drop-out voltage regulator.

TLE8457A Features

* Single-wire LIN transceiver for transmission rates up to 20 kBit/s
* Compliant to ISO 17987-4, LIN specification 2.2 A and SAE J2602
* 5 V or 3.3 V low drop-out linear voltage regulator with 70 mA current capability
* Stable with ceramic output capacitor of 1 µF

TLE8457A Applications

* LIN slave satellite modules
* Window lifters
* Rain and light sensors
* Sun roof control modules
* Wiper modules
* Ambient lighting Data Sheet 1 www. infineon. com/Automotive-Transceivers Rev. 1.1 2018-10-15 TLE8457A / TLE8457B LIN Transceiver wit

📥 Download Datasheet

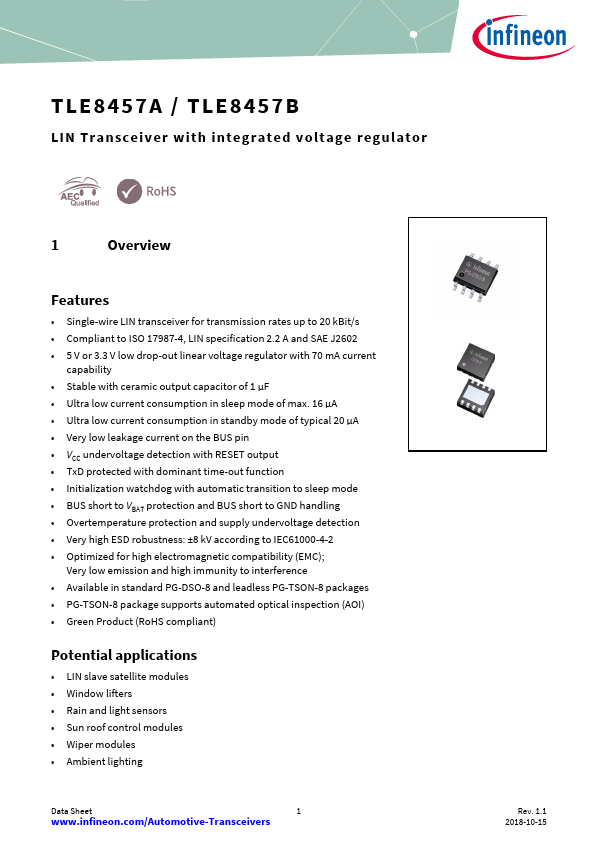

Preview of TLE8457A PDF

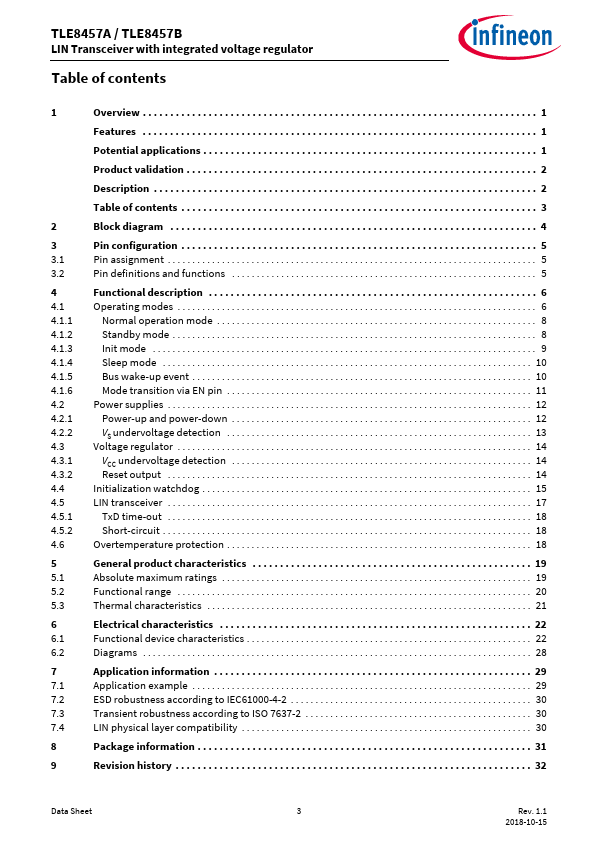

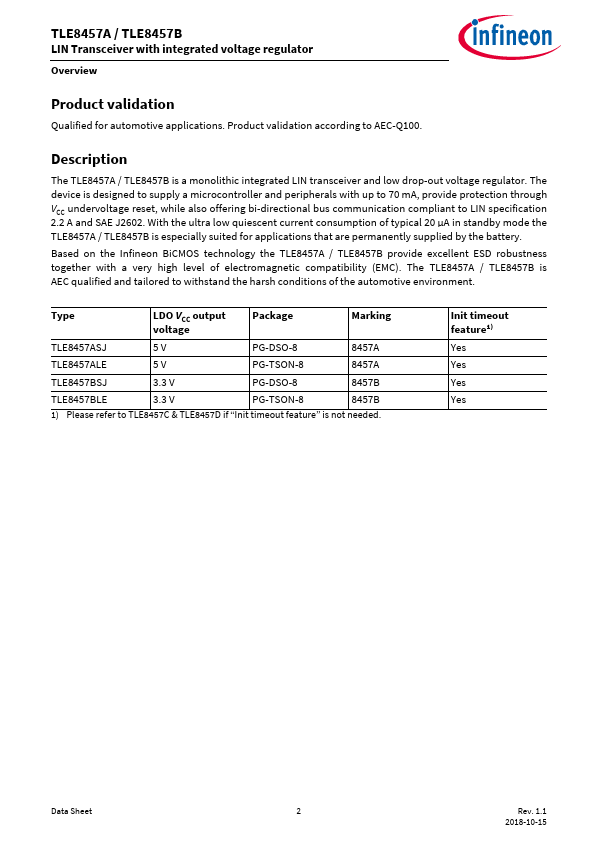

datasheet Preview Page 2 datasheet Preview Page 3
