TLE5555iC - TMR transmission speed sensor

Name: TLE5555iC
SKU: TLE5555iC-1578792

Infineon

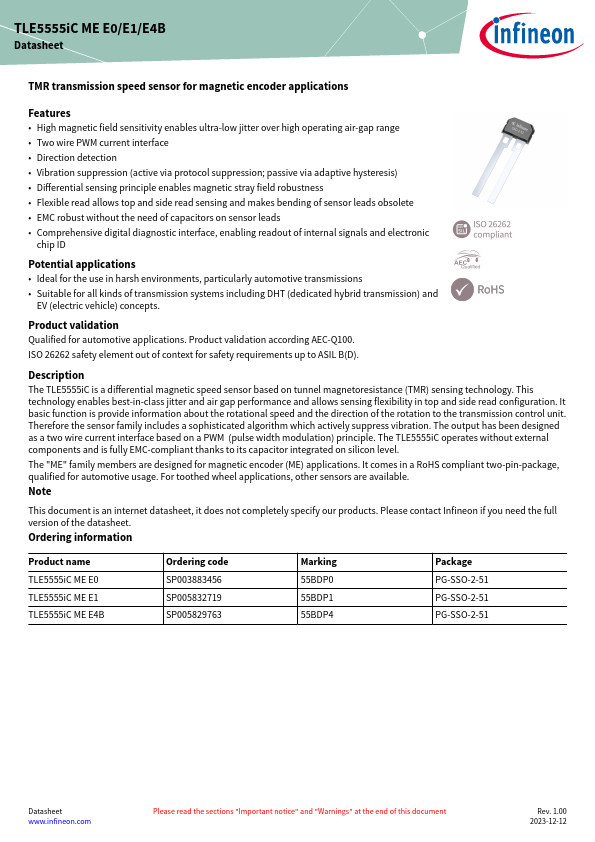

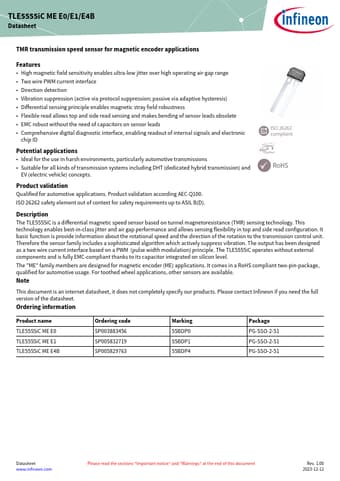

The TLE5555iC by Infineon is a TMR transmission speed sensor. Below is the official datasheet preview.

Datasheet Details

Part number	TLE5555iC
Manufacturer	Infineon
File Size	2.60 MB
Description	TMR transmission speed sensor
Datasheet	TLE5555iC-Infineon.pdf

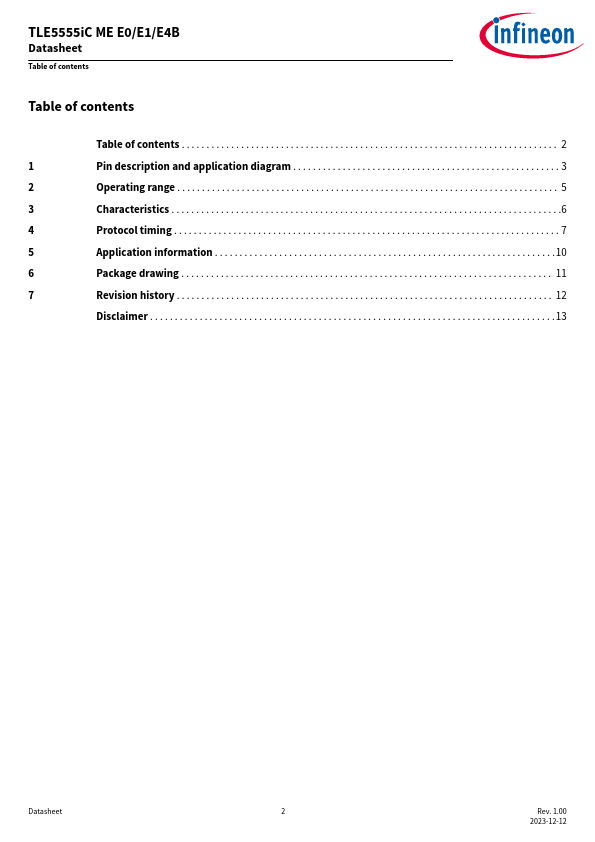

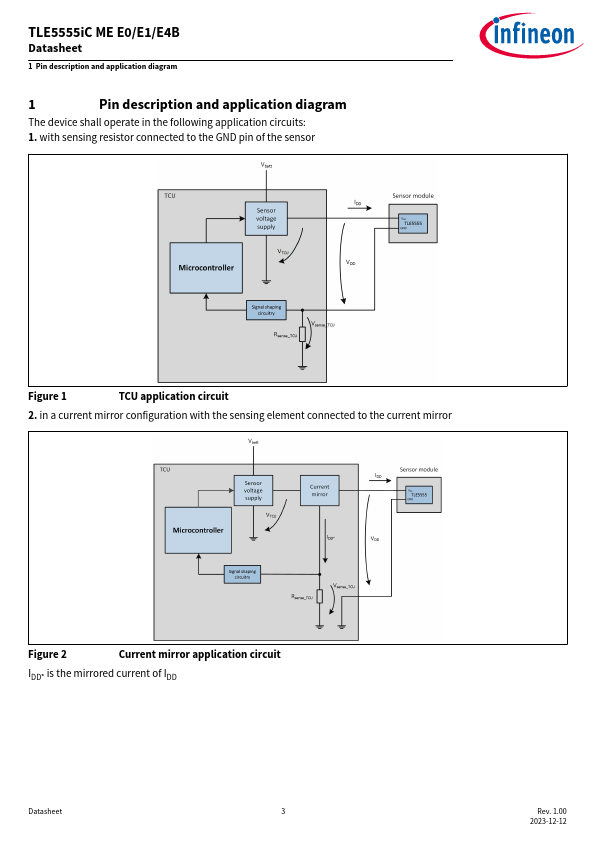

Additional preview pages of the TLE5555iC datasheet.

The TLE5555iC is a differential magnetic speed sensor based on tunnel magnetoresistance (TMR) sensing technology.

High magnetic field sensitivity enables ultra-low jitter over high operating air-gap range.
Two wire PWM current interface.
Direction detection.
Vibration suppression (active via protocol suppression; passive via adaptive hysteresis).
Differential sensing principle enables magnetic stray field robustness.
Flexible read allows top and side read sensing and makes bending of sensor leads obsolete.
EMC robust without the need of capacit.
