TLE5009A16D, TLE5009A16 Analog AMR/GMR Angle Sensors

TLE5009A16D Description

TLE5x09A16(D) Analog AMR/GMR Angle Sensors .
The TLE5x0916(D) are angle sensor with analog outputs.

TLE5009A16D Features

* Single and dual die sensor with AMR or GMR technology
* Separate supply pins for top and bottom sensor
* Low current consumption and quick start up
* 180°(AMR) and 360°(GMR) contactless angle measurement
* Output amplitude optimized for circuits with 3.3 V o

TLE5009A16D Applications

* Diverse redundance combination of GMR sensor and AMR sensor in one package possible
* High accuracy typically 0.1° overall angle error for AMR sensor
* Green product (RoHS compliant) Functional Safety Safety Manual and Safety Analysis Summary Report available on request. Pr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TLE5009A16D, TLE5009A16. Please refer to the document for exact specifications by model.

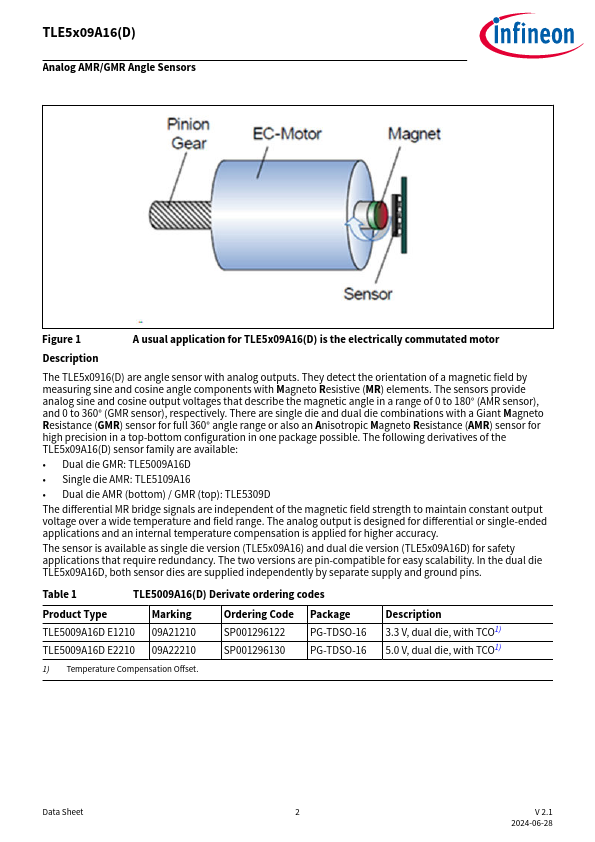

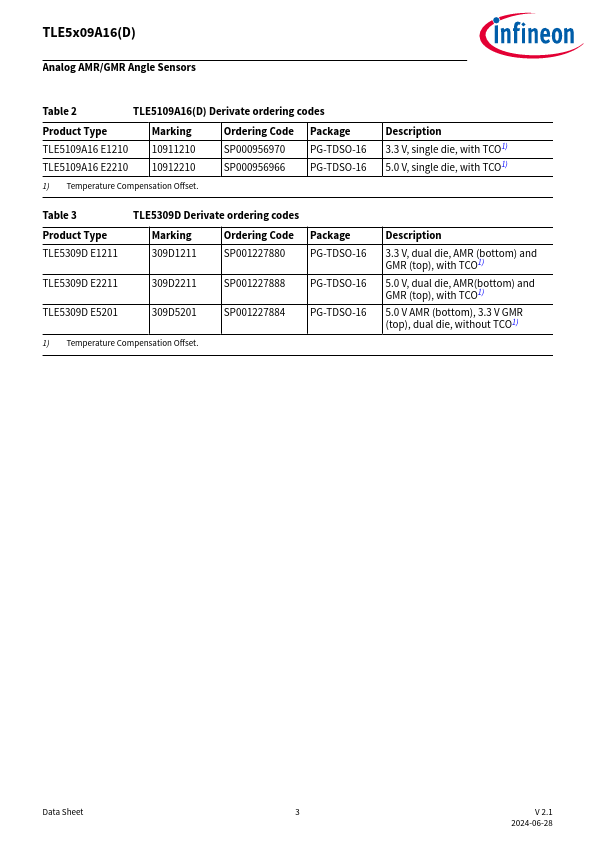

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TLE5009A16D, TLE5009A16
Manufacturer
Infineon ↗
File Size
794.92 KB
Datasheet
TLE5009A16-Infineon.pdf
Description
Analog AMR/GMR Angle Sensors
Note
This datasheet PDF includes multiple part numbers: TLE5009A16D, TLE5009A16.
Please refer to the document for exact specifications by model.
