TLE5046SiC-PWM2 - High-End GMR Wheel Speed Sensor

TLE5046SiC-PWM2 Description

TLE5046SiC-PWM2 High-End GMR Wheel Speed Sensor ASIL B(D) .
The TLE5046SiC-PWM2 is a wheel speed sensor with direction indication designed for sophisticated vehicle control systems.

TLE5046SiC-PWM2 Features

* Developed according to ISO 26262, compliant to the requirements of ASILB(D)
* Low jitter 0.02% due to high switching accuracy enables iTPMS
* Wide operating junction temperature range -40°C to 190°C
* Two-wire current interface providing speed and direction informat

📥 Download Datasheet

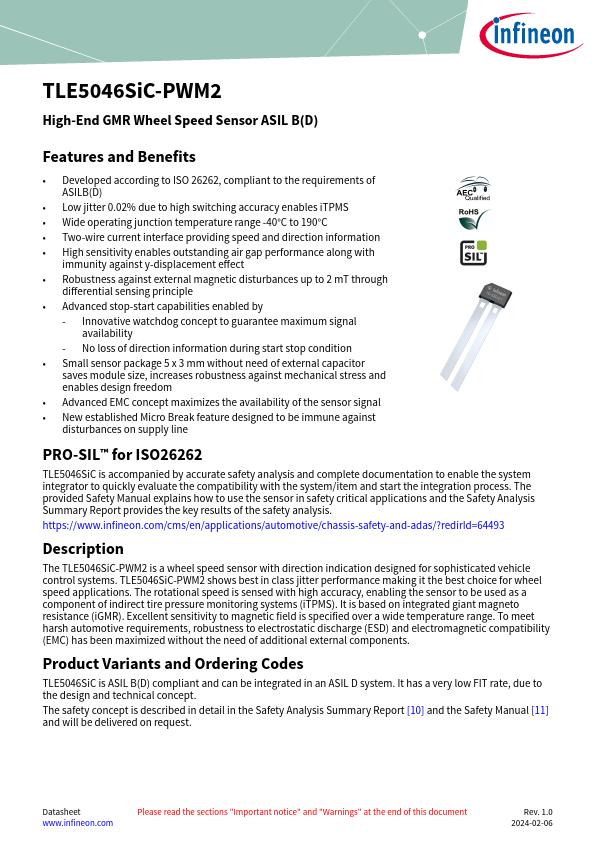

Preview of TLE5046SiC-PWM2 PDF

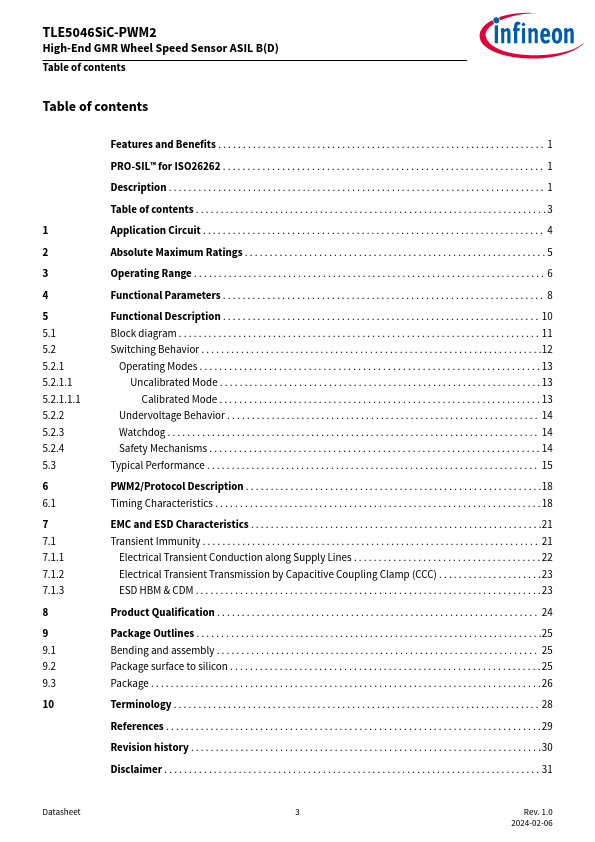

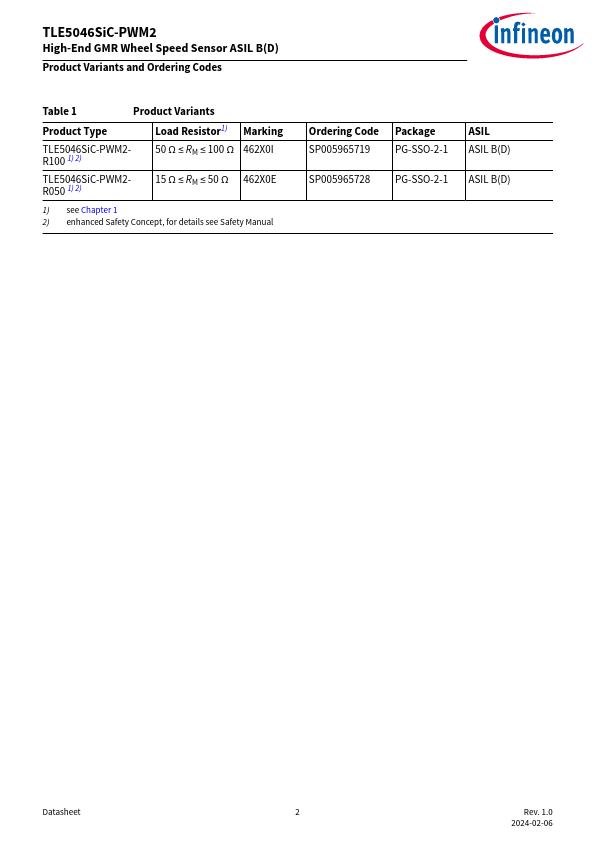

datasheet Preview Page 2 datasheet Preview Page 3
