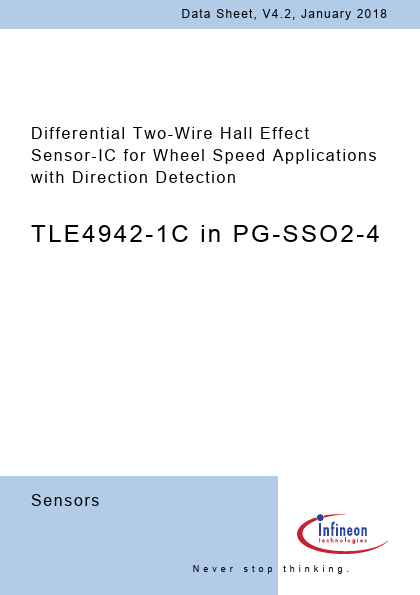

TLE4942-1C - Differential Two-Wire Hall Effect Sensor IC

Infineon

TLE4942-1C Datasheet Preview — Preview of TLE4942-1C PDF

Datasheet Details

Part number	TLE4942-1C
Manufacturer	Infineon ↗
File Size	653.45 KB
Description	Differential Two-Wire Hall Effect Sensor IC
Datasheet	TLE4942-1C-Infineon.pdf

TLE4942-1C Product details

Description

The differential Hall Effect IC detects the motion of ferromagnetic or permanent magnet structures by measuring the differential flux density of the magnetic field.

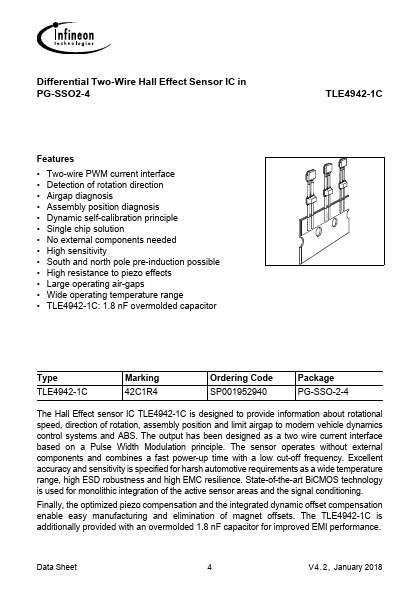

Features

Two-wire PWM current interface.
Detection of rotation direction.
Airgap diagnosis.
Assembly position diagnosis.
Dynamic self-calibration principle.
Single chip solution.
No external components needed.
High sensitivity.
South and north pole pre-induction possible.
High resistance to piezo effects.
Large operating air-gaps.
Wide operating temperature range.
TLE4942-1C: 1.8 nF overm.
