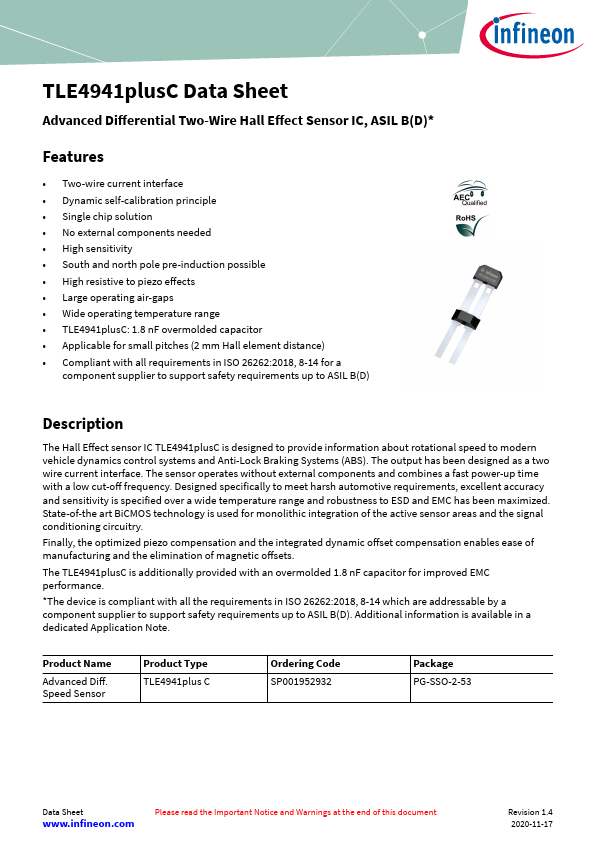

TLE4941plusC - Advanced Differential Two-Wire Hall Effect Sensor

Infineon

TLE4941plusC Datasheet Preview — Preview of TLE4941plusC PDF

Datasheet Details

Part number	TLE4941plusC
Manufacturer	Infineon ↗
File Size	1.41 MB
Description	Advanced Differential Two-Wire Hall Effect Sensor
Datasheet	TLE4941plusC-Infineon.pdf

TLE4941plusC Product details

Description

The Hall Effect sensor IC TLE4941plusC is designed to provide information about rotational speed to modern vehicle dynamics control systems and Anti-Lock Braking Systems (ABS).

Features

s.
Two-wire current interface.
Dynamic self-calibration principle.
Single chip solution.
No external components needed.
High sensitivity.
South and north pole pre-induction possible.
High resistive to piezo effects.
Large operating air-gaps.
Wide operating temperature range.
TLE4941plusC: 1.8 nF overmolded capacitor.
Applicable for small pitches (2 mm Hall element distance).
Compliant with.
