TLE4294GV50 - Low dropout voltage regulator

Infineon

The TLE4294GV50 by Infineon is a Low dropout voltage regulator. Below is the official datasheet preview.

📥 Download Datasheet

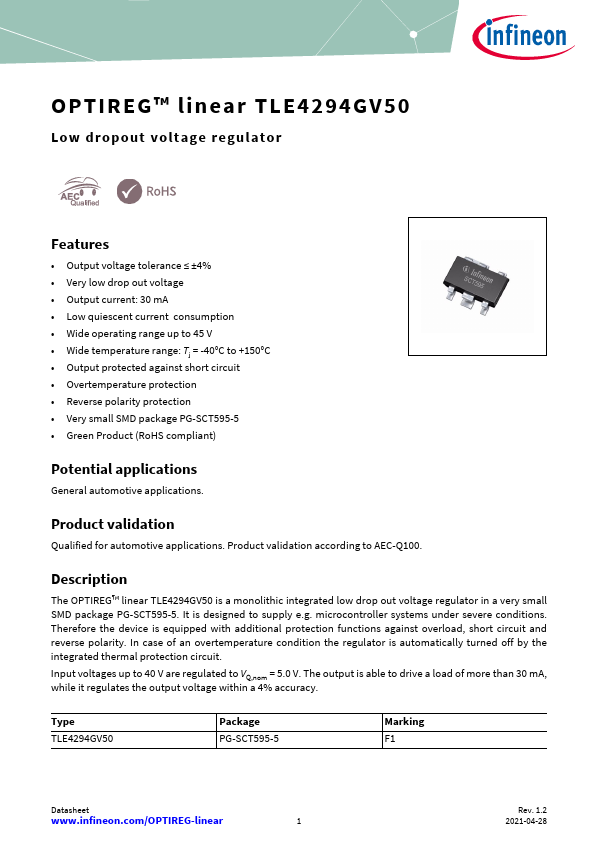

TLE4294GV50 Low dropout voltage regulator by Infineon - Datasheet Preview — Official preview page of the TLE4294GV50 Low dropout voltage regulator datasheet (Infineon).

Datasheet Details

Part number	TLE4294GV50
Manufacturer	Infineon
File Size	443.55 KB
Description	Low dropout voltage regulator
Datasheet	TLE4294GV50-Infineon.pdf

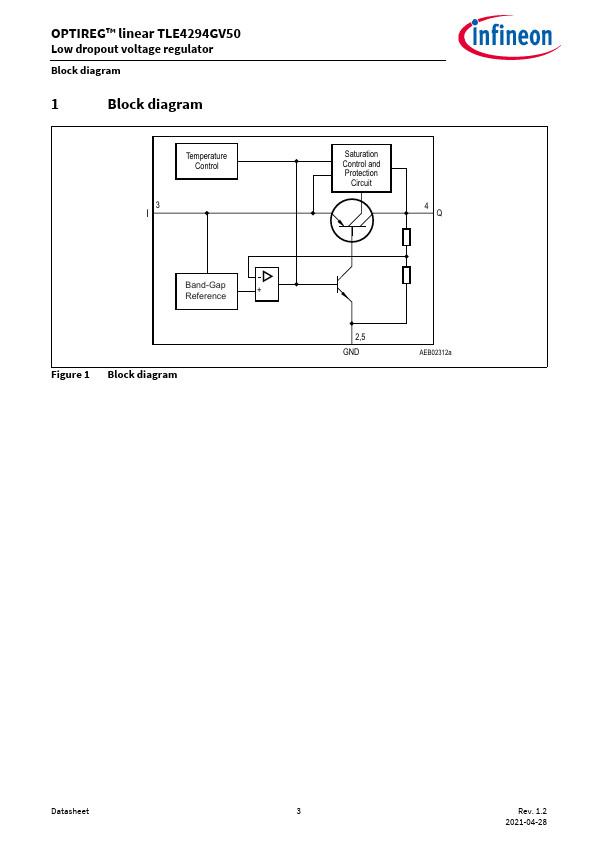

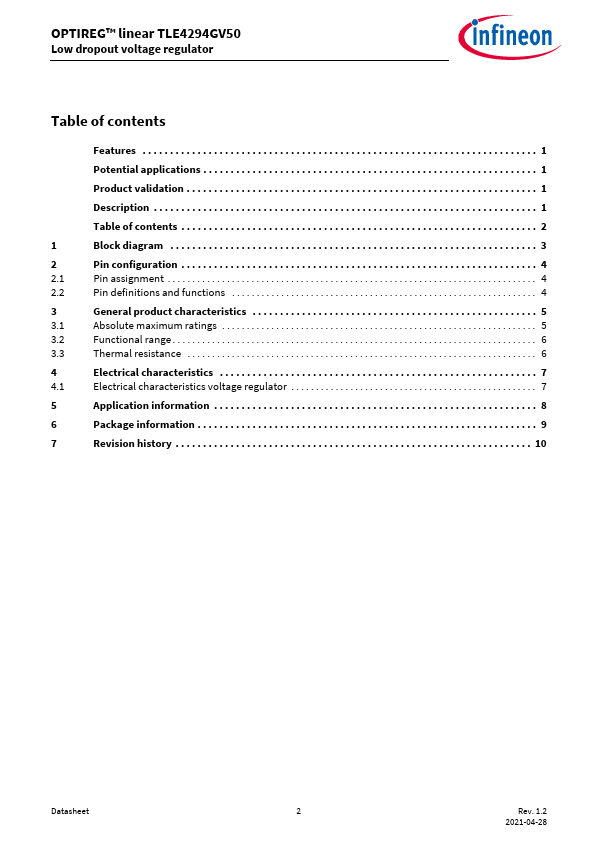

Additional preview pages of the TLE4294GV50 datasheet.

TLE4294GV50 Product details

Description

The OPTIREG™ linear TLE4294GV50 is a monolithic integrated low drop out voltage regulator in a very small SMD package PG-SCT595-5.

Features

Output voltage tolerance ≤ ±4%.
Very low drop out voltage.
Output current: 30 mA.
Low quiescent current consumption.
Wide operating range up to 45 V.
Wide temperature range: Tj = -40°C to +150°C.
Output protected against short circuit.
Overtemperature protection.
Reverse polarity protection.
Very small SMD package PG-SCT595-5.
Green Product (RoHS compliant) Potential.
