TLE4296-2 - Low Drop Voltage Regulator

Infineon Technologies

The TLE4296-2 by Infineon Technologies is a Low Drop Voltage Regulator. Below is the official datasheet preview.

📥 Download Datasheet

TLE4296-2 Low Drop Voltage Regulator by Infineon Technologies - Datasheet Preview — Official preview page of the TLE4296-2 Low Drop Voltage Regulator datasheet (Infineon Technologies).

Datasheet Details

Part number	TLE4296-2
Manufacturer	Infineon Technologies
File Size	470.22 KB
Description	Low Drop Voltage Regulator
Datasheet	TLE4296-2-InfineonTechnologies.pdf
Additional preview pages of the TLE4296-2 datasheet.

TLE4296-2 Product details

Description

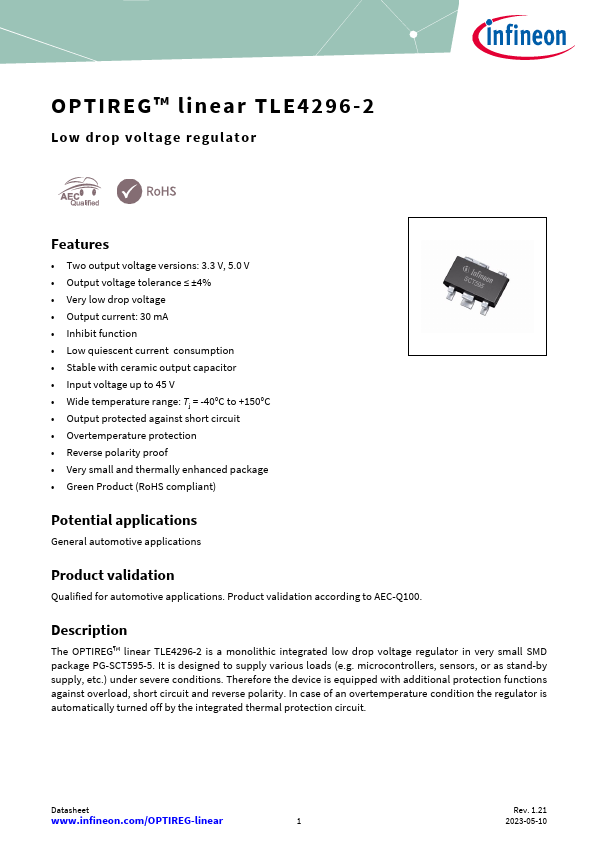

The OPTIREG™ linear TLE4296-2 is a monolithic integrated low drop voltage regulator in very small SMD package PG-SCT595-5.

Features

Two output voltage versions: 3.3 V, 5.0 V.
Output voltage tolerance ≤ ±4%.
Very low drop voltage.
Output current: 30 mA.
Inhibit function.
Low quiescent current consumption.
Stable with ceramic output capacitor.
Input voltage up to 45 V.
Wide temperature range: Tj = -40°C to +150°C.
Output protected against short circuit.
Overtemperature protection.
Reverse polarity proof.
Very s.
