TLD5501-2QV - Dual SYNC Buck Controller

TLD5501-2QV Description

TLD5501-2QV Dual SYNC Buck Controller with SPI Interface Infineon LITIX™ Power Flex Package Marking Sales Name PG-VQFN-48 TLD55012QV TLD5501-2QV 1 .
The TLD5501-2QV is a synchronous DUAL Channel DC/DC buck controller with built in protection features and SPI interface.

TLD5501-2QV Features

* Dual-Channel synchronous DC/DC Controller for HIGH POWER LED drivers
* Wide LED forward voltage Range (2 V up to 50 V)
* Wide VIN Range (IC 4.5 V to 40 V, Power 4.5 V to 55 V)
* Switching Frequency Range from 200 kHz to 700 kHz
* SPI for diagnostics and cont

TLD5501-2QV Applications

* Especially designed for driving high power LEDs in automotive applications
* Automotive Exterior Lighting: full LED headlamp assemblies (Low Beam, High Beam, Matrix Beam, Pixel Light)
* General purpose current/voltage controlled DC/DC buck LED driver Datasheet 2 Rev. 2.0

📥 Download Datasheet

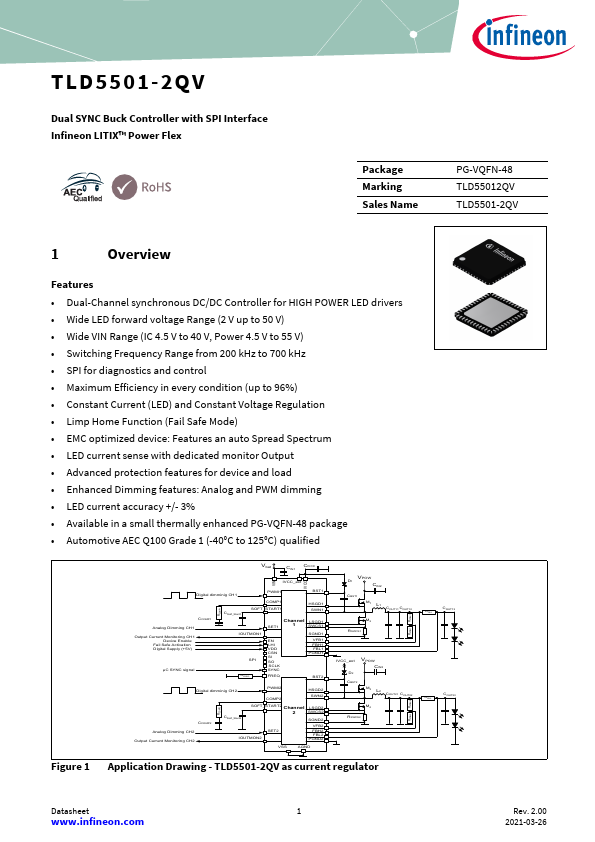

Preview of TLD5501-2QV PDF

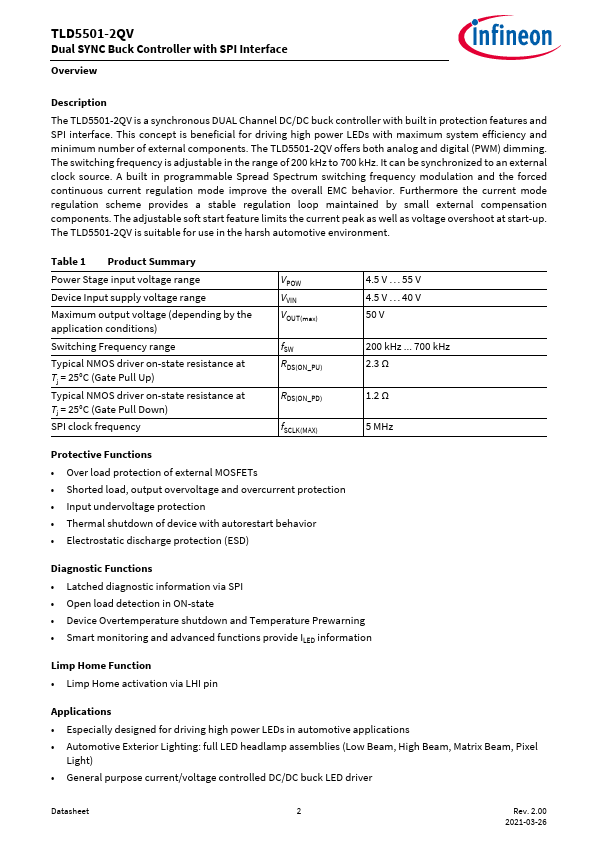

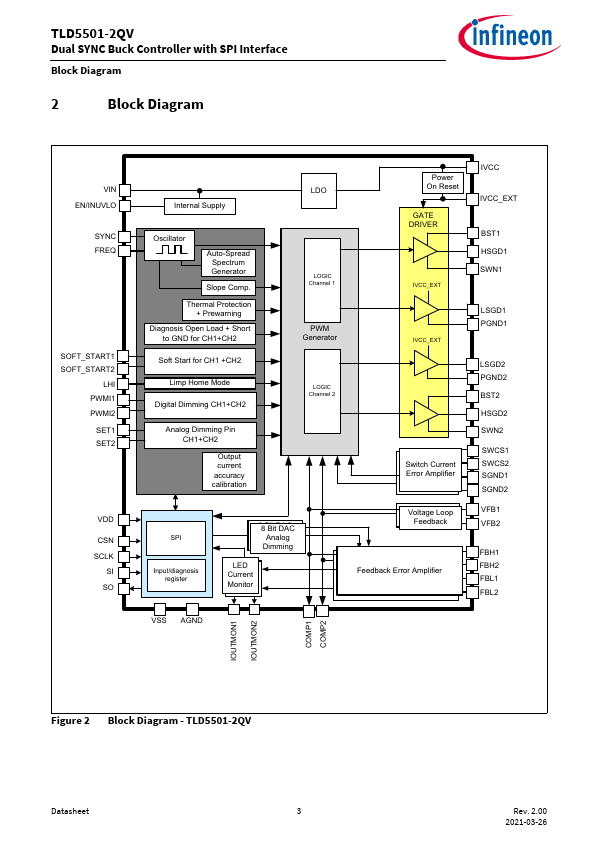

datasheet Preview Page 2 datasheet Preview Page 3
